当前位置:网站首页 > 产品中心 >电气布线类 >绝缘线槽类 Insulated trunking type
A04 密封绝缘线槽SEALED INSULATED DISTRIBUTION GROOVE

A04 密封绝缘线槽SEALED INSULATED DISTRIBUTION GROOVE

  • ·材质:采用康哲 UL:E543465 低卤素硬质 PVC,绝缘佳,不自燃,耐高温。·产品认证 : 美国 UL:E543465 欧洲 CE 欧洲环保 RoHS,REACH 、无石棉·工作温度:静态 -40° C 持续高温至 65° C, 短时间可达 85° C。·构造:由槽底及槽盖组成 ,·颜色:本色为灰色,其它颜色可按需定制。·选型:MF 表示密封不打孔,标准长度 2...
  • 产品概述

·材质:采用康哲 UL:E543465 低卤素硬质 PVC,绝缘佳,不自燃,耐高温。

·产品认证 : 美国 UL:E543464 欧洲 CE 欧洲环保 RoHS,REACH 、无石棉

·工作温度:静态 -40° C 持续高温至 65° C, 短时间可达 85° C。

·构造:由槽底及槽盖组成 ,

·颜色:本色为灰色,其它颜色可按需定制。

·选型:MF 表示密封不打孔,标准长度 2 米。



· Material: Kangzhe UL:E543465 low halogen rigid PVC, good insulation, no spontaneous combustion, high temperature resistance.

Product certification: United States UL:E543464 Europe CE European Environmental Protection RoHS,REACH

· Operating temperature: static -40° C continuous high temperature to 65° C, up to 85° C for a short time.

· Structure: composed of groove bottom and groove cover, both sides of the bottom groove are provided with outlet holes.

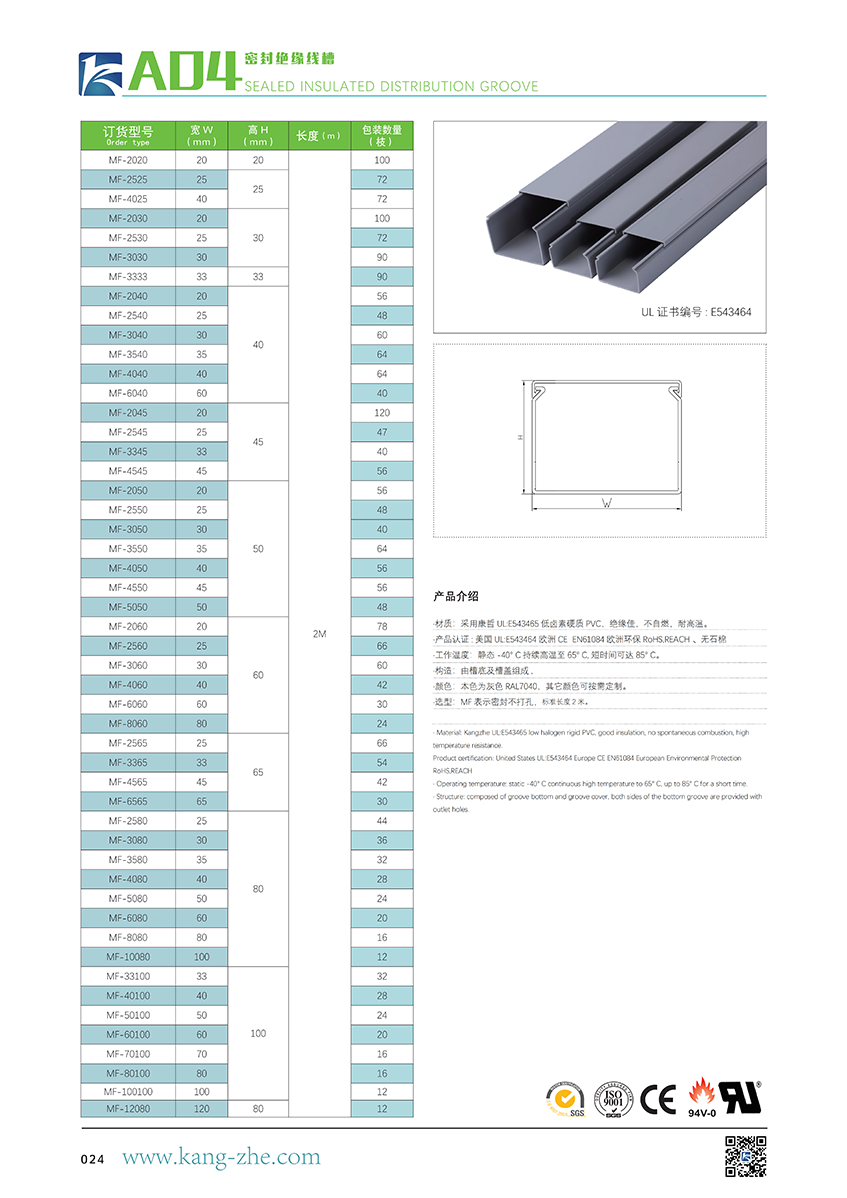

康哲手册最新2025_24
