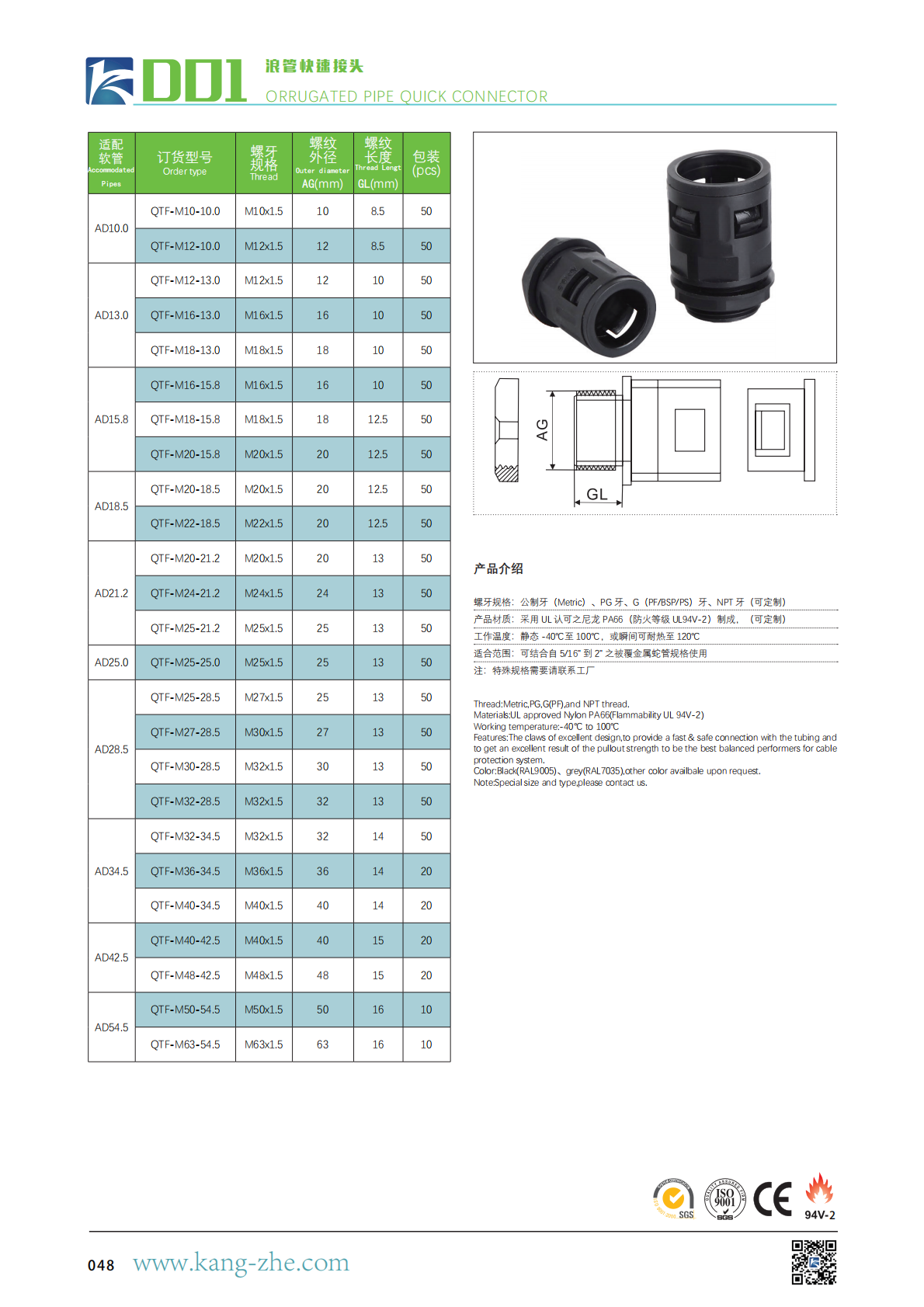

D01 浪 管 快 速 接 头 ORRUGATED PIPE QUICK CONNECTOR

螺牙规格：公制牙（Metric）、PG 牙、G（PF/BSP/PS）牙、NPT 牙（可定制）

产品材质：采用 UL 认可之尼龙 PA66（防火等级 UL94V-2）制成，（可定制）

工作温度：静态 -40℃至 100℃，或瞬间可耐热至 120℃

适合范围：可结合自 5/16" 到 2" 之被覆金属蛇管规格使用

注：特殊规格需要请联系工厂

Thread:Metric,PG,G(PF),and NPT thread.

Materials:UL approved Nylon PA66(Flammability UL 94V-2)

Working temperature:-40℃ to 100℃

Features:The claws of excellent design,to provide a fast & safe connection with the tubing and

to get an excellent result of the pullout strength to be the best balanced performers for cable

protection system.

Color:Black(RAL9005)、grey(RAL7035),other color availbale upon request.

Note:Special size and type,please contact us.
