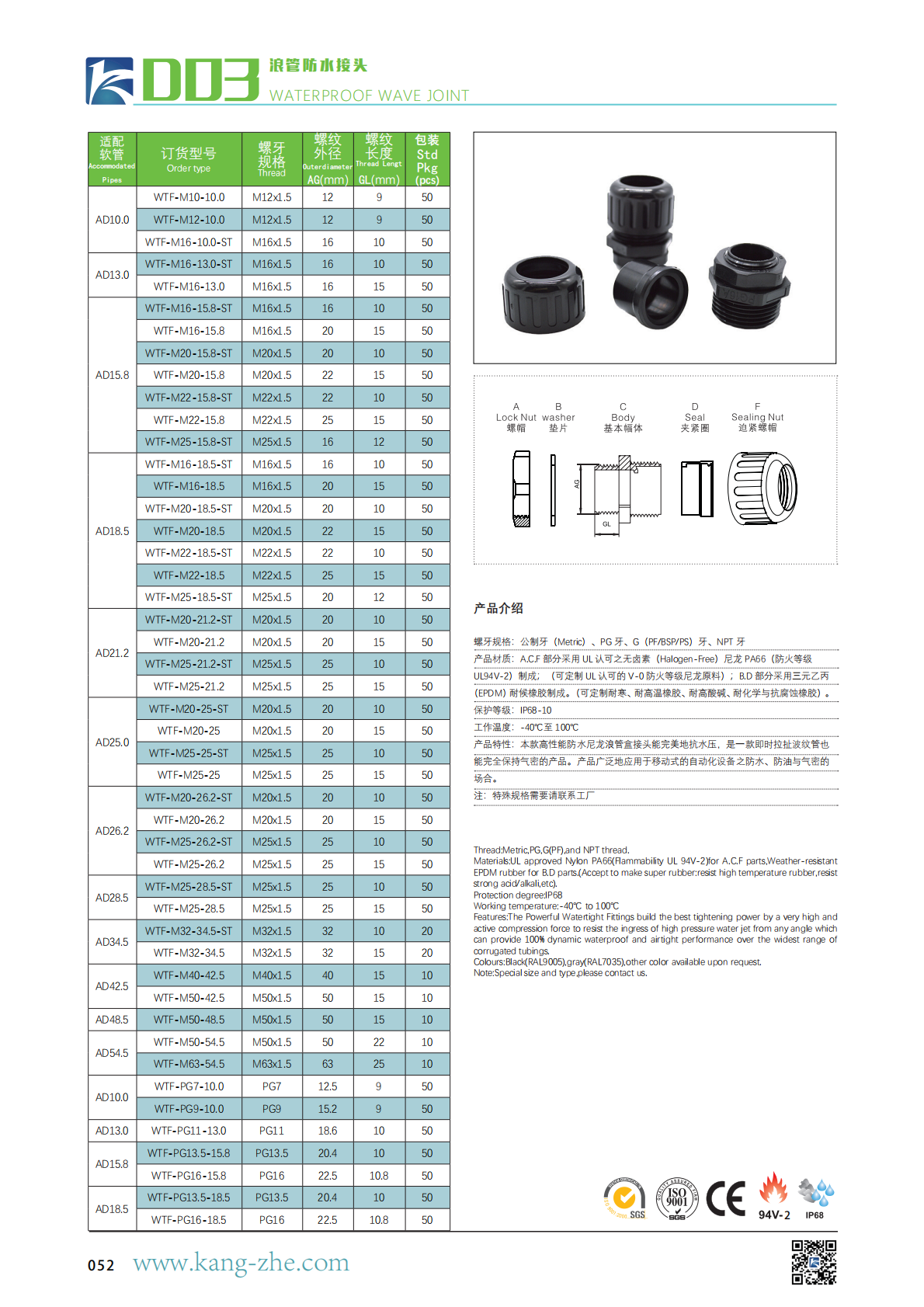

D03 浪管防水接头 WATERPROOF WAVE JOINT

螺牙规格：公制牙（Metric）、PG 牙、G（PF/BSP/PS）牙、NPT 牙

产品材质：A.C.F 部分采用 UL 认可之无卤素（Halogen-Free）尼龙 PA66（防火等级UL94V-2）制成；（可定制 UL 认可的 V-0 防火等级尼龙原料）；B.D 部分采用三元乙丙（EPDM）耐候橡胶制成。（可定制耐寒、耐高温橡胶、耐高酸碱、耐化学与抗腐蚀橡胶）。

保护等级：IP68-10

工作温度：-40℃至 100℃

产品特性：本款高性能防水尼龙浪管盒接头能完美地抗水压，是一款即时拉扯波纹管也能完全保持气密的产品。产品广泛地应用于移动式的自动化设备之防水、防油与气密的场合。

注：特殊规格需要请联系工厂

Thread:Metric,PG,G(PF),and NPT thread.

Materials:UL approved Nylon PA66(Flammability UL 94V-2)for A.C.F parts,Weather-resistant

EPDM rubber for B.D parts.(Accept to make super rubber:resist high temperature rubber,resist

strong acid/alkali,etc).

Protection degree:IP68

Working temperature:-40℃ to 100℃

Features:The Powerful Watertight Fittings build the best tightening power by a very high and

active compression force to resist the ingress of high pressure water jet from any angle which

can provide 100% dynamic waterproof and airtight performance over the widest range of

corrugated tubings.

Colours:Black(RAL9005),gray(RAL7035),other color available upon request.

Note:Special size and type,please contact us.
