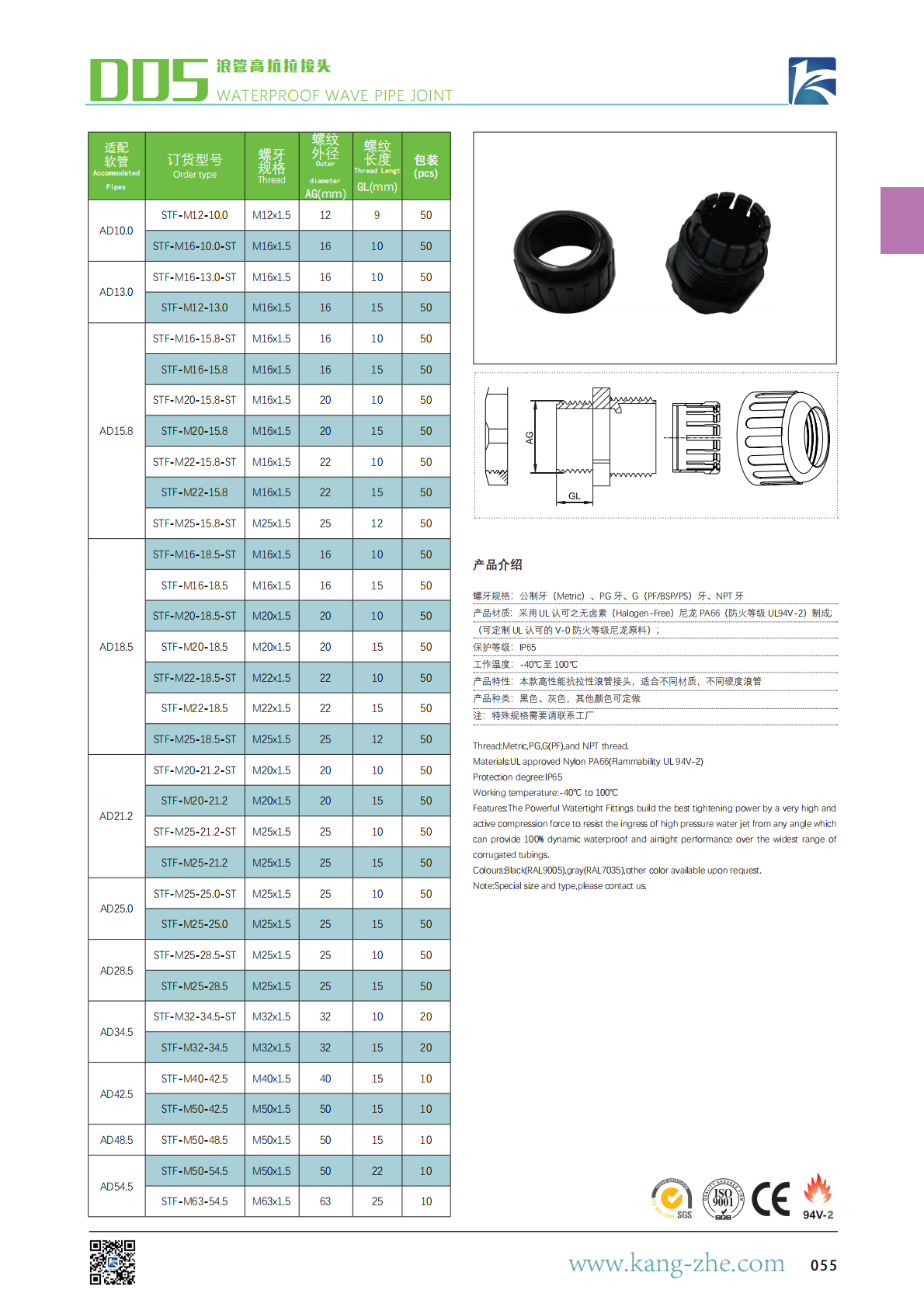

D05 浪管高抗拉接头 WATERPROOF WAVE PIPE JOINT

螺牙规格：公制牙（Metric）、PG 牙、G（PF/BSP/PS）牙、NPT 牙

产品材质：采用 UL 认可之无卤素（Halogen-Free）尼龙 PA66（防火等级 UL94V-2）制成；（可定制 UL 认可的 V-0 防火等级尼龙原料）；

保护等级：IP65

工作温度：-40℃至 100℃

产品特性：本款高性能抗拉性浪管接头，适合不同材质，不同硬度浪管

产品种类：黑色、灰色，其他颜色可定做

注：特殊规格需要请联系工厂

Thread:Metric,PG,G(PF),and NPT thread.

Materials:UL approved Nylon PA66(Flammability UL 94V-2)

Protection degree:IP65

Working temperature:-40℃ to 100℃

Features:The Powerful Watertight Fittings build the best tightening power by a very high and

active compression force to resist the ingress of high pressure water jet from any angle which

can provide 100% dynamic waterproof and airtight performance over the widest range of

corrugated tubings.

Colours:Black(RAL9005),gray(RAL7035),other color available upon request.

Note:Special size and type,please contact us.
