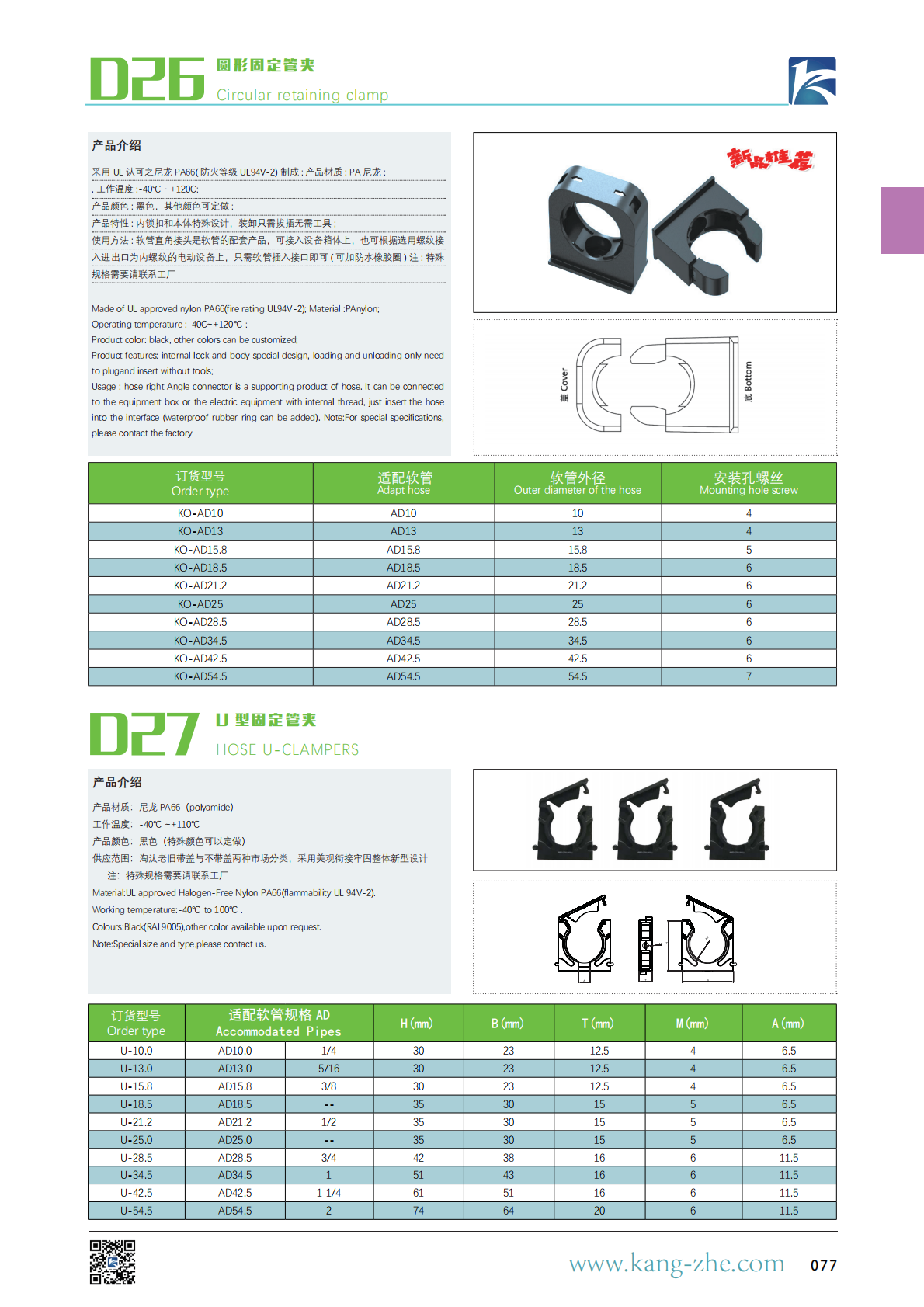

D26 圆形固定管夹 Circular retaining clamp

采用 UL 认可之尼龙 PA66( 防火等级 UL94V-2) 制成 ; 产品材质 : PA 尼龙 ;

. 工作温度 :-40℃ ~+120C;

产品颜色 : 黑色，其他颜色可定做 ;

产品特性 : 内锁扣和本体特殊设计，装卸只需拔插无需工具 ;

使用方法 : 软管直角接头是软管的配套产品，可接入设备箱体上，也可根据选用螺纹接入进出口为内螺纹的电动设备上，只需软管插入接口即可 ( 可加防水橡胶圈 ) 注 : 特殊

规格需要请联系工厂

Made of UL approved nylon PA66(fire rating UL94V-2); Material :PAnylon;

Operating temperature :-40C~+120℃ ;

Product color: black, other colors can be customized;

Product features: internal lock and body special design, loading and unloading only need to plugand insert without tools;

Usage : hose right Angle connector is a supporting product of hose. It can be connected to the equipment box or the electric equipment with internal thread, just insert the hose into the interface (waterproof rubber ring can be added). Note:For special specifications,

please contact the factory
