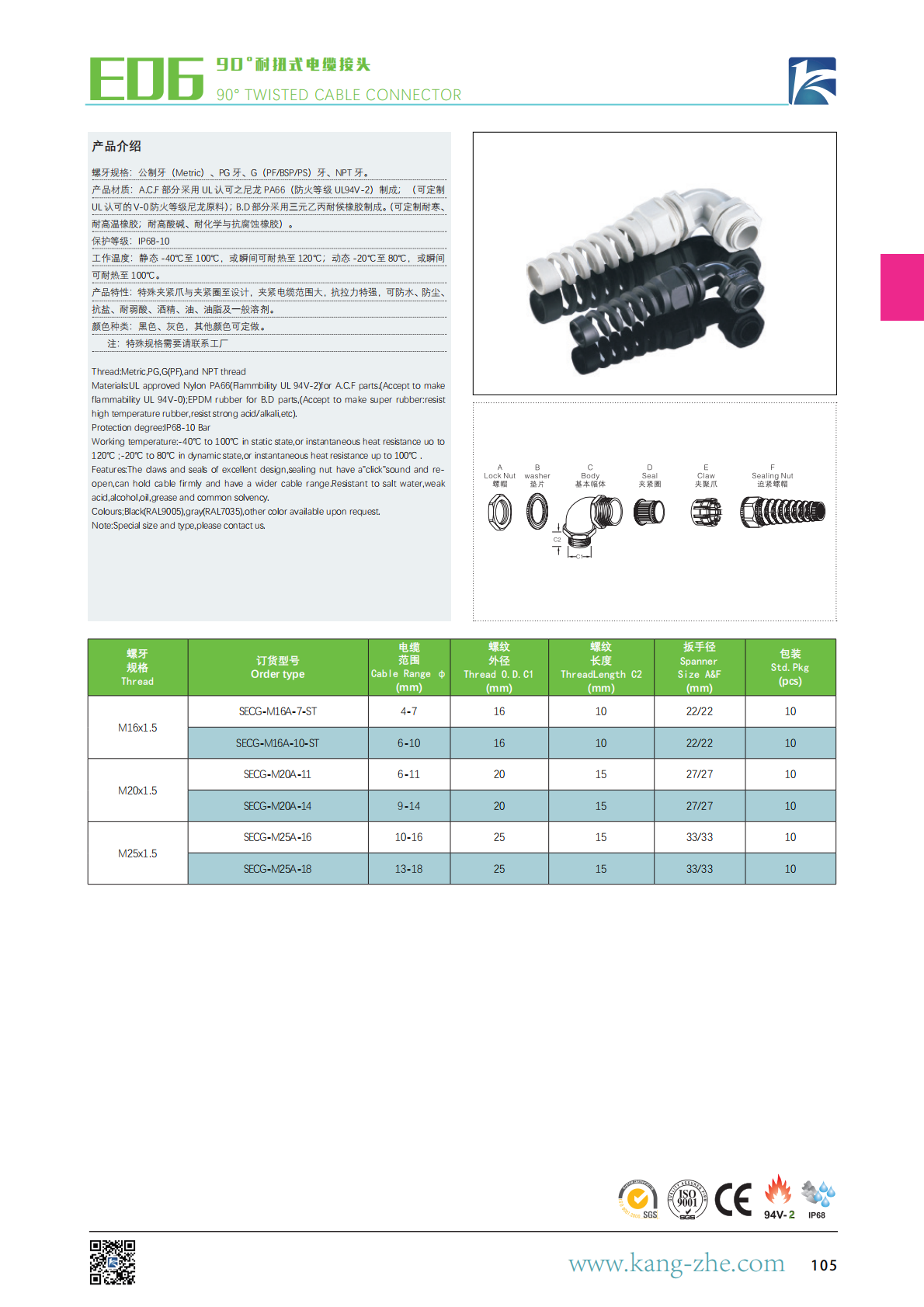

E06 90°耐扭式电缆接头 90° TWISTED CABLE CONNECTOR

螺牙规格：公制牙（Metric）、PG 牙、G（PF/BSP/PS）牙、NPT 牙。

产品材质：A.C.F 部分采用 UL 认可之尼龙 PA66（防火等级 UL94V-2）制成；（可定制UL 认可的 V-0 防火等级尼龙原料）；B.D 部分采用三元乙丙耐候橡胶制成。（可定制耐寒、耐高温橡胶；耐高酸碱、耐化学与抗腐蚀橡胶）。

保护等级：IP68-10

工作温度：静态 -40℃至 100℃，或瞬间可耐热至 120℃；动态 -20℃至 80℃，或瞬间可耐热至 100℃。

产品特性：特殊夹紧爪与夹紧圈至设计，夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、耐弱酸、酒精、油、油脂及一般溶剂。

颜色种类：黑色、灰色，其他颜色可定做。

注：特殊规格需要请联系工厂

Thread:Metric,PG,G(PF),and NPT thread

Materials:UL approved Nylon PA66(Flammbility UL 94V-2)for A.C.F parts.(Accept to makeflammability UL 94V-0);EPDM rubber for B.D parts,(Accept to make super rubber:resisthigh temperature rubber,resist strong acid/alkali,etc).

Protection degree:IP68-10 Bar

Working temperature:-40℃ to 100℃ in static state,or instantaneous heat resistance uo to120℃ ;-20℃ to 80℃ in dynamic state,or instantaneous heat resistance up to 100℃ .

Features:The claws and seals of excellent design,sealing nut have a"click"sound and reopen,can hold cable firmly and have a wider cable range.Resistant to salt water,weak acid,alcohol,oil,grease and common solvency.

Colours;Black(RAL9005),gray(RAL7035),other color available upon request.

Note:Special size and type,please contact us.
