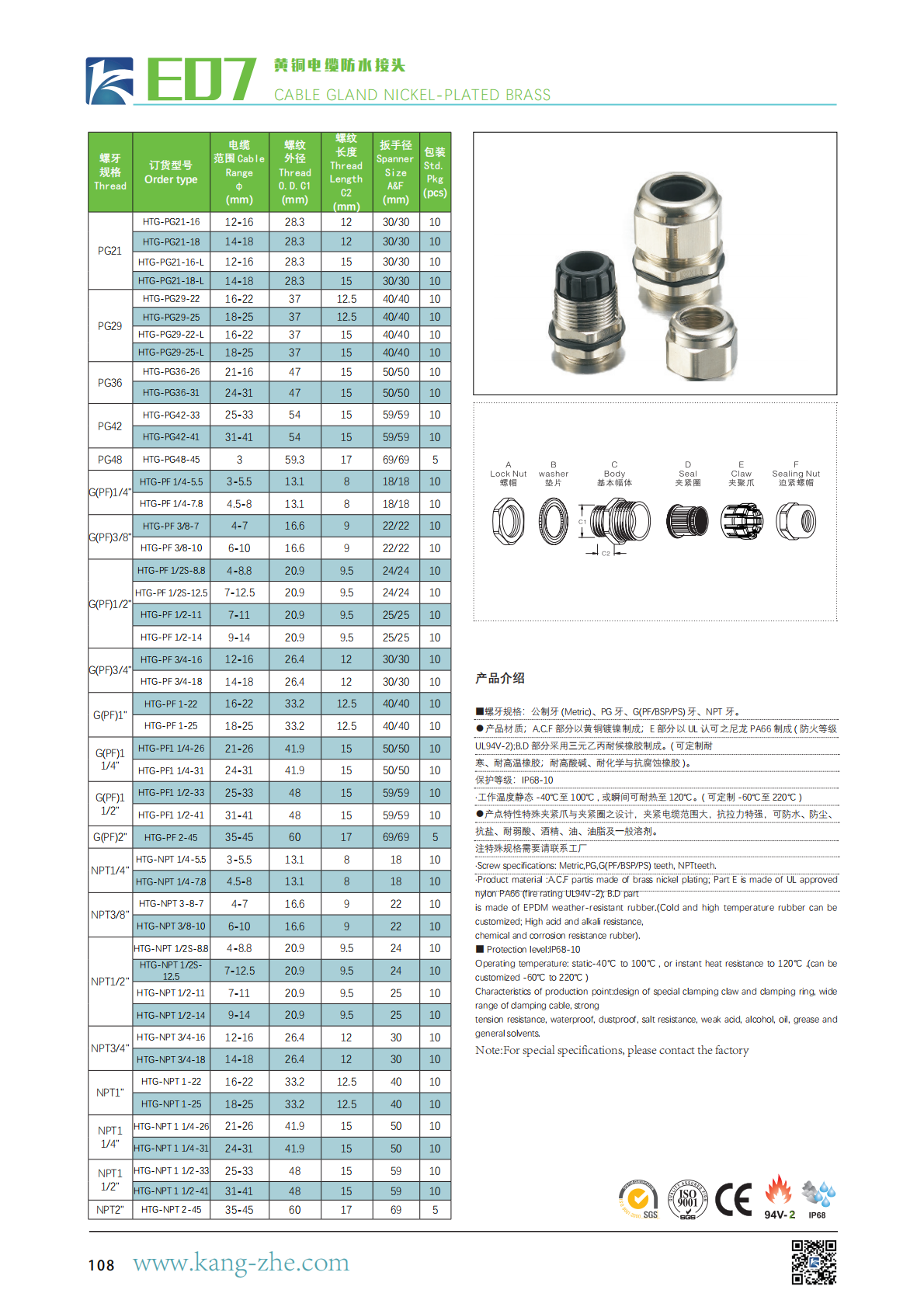

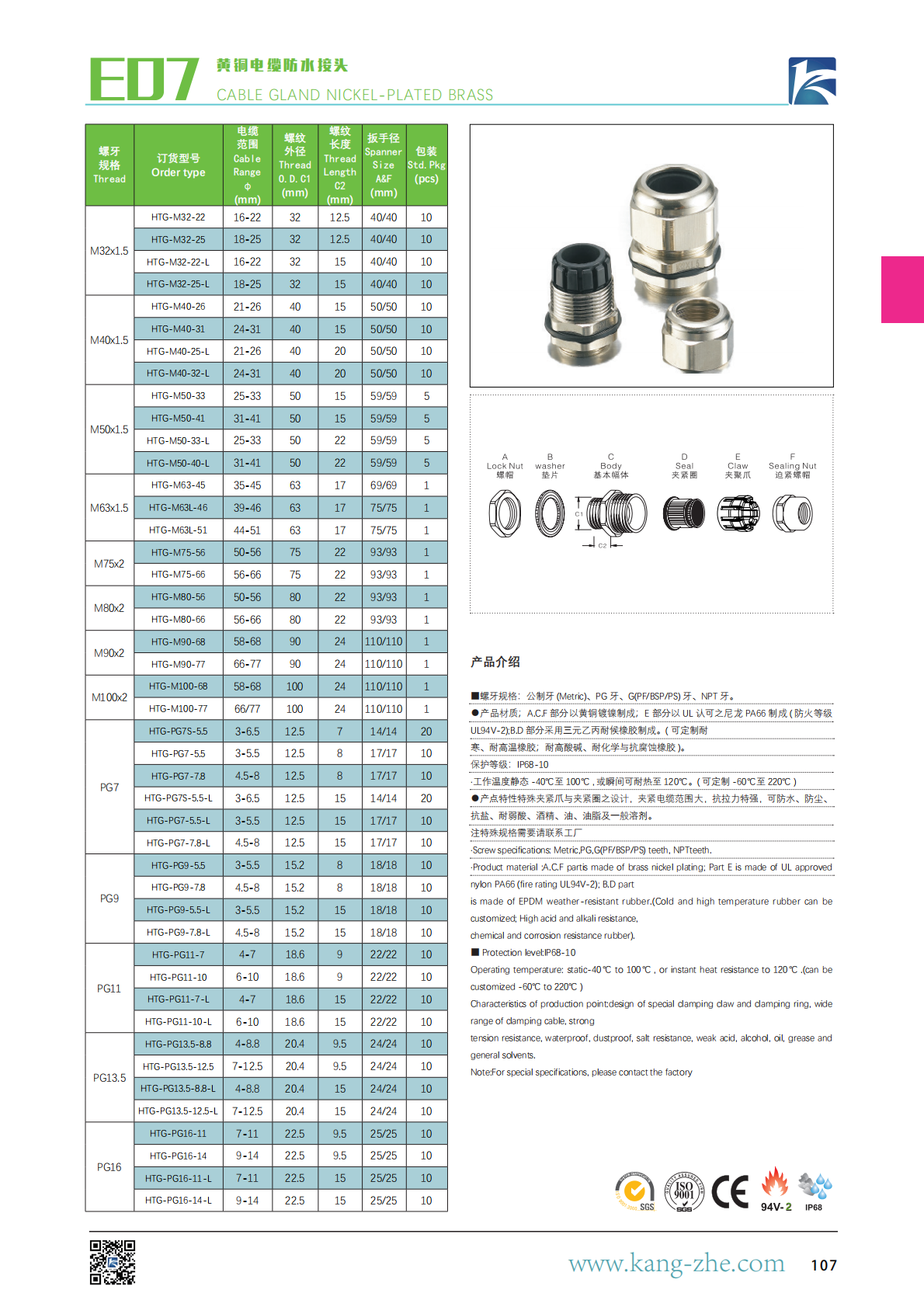

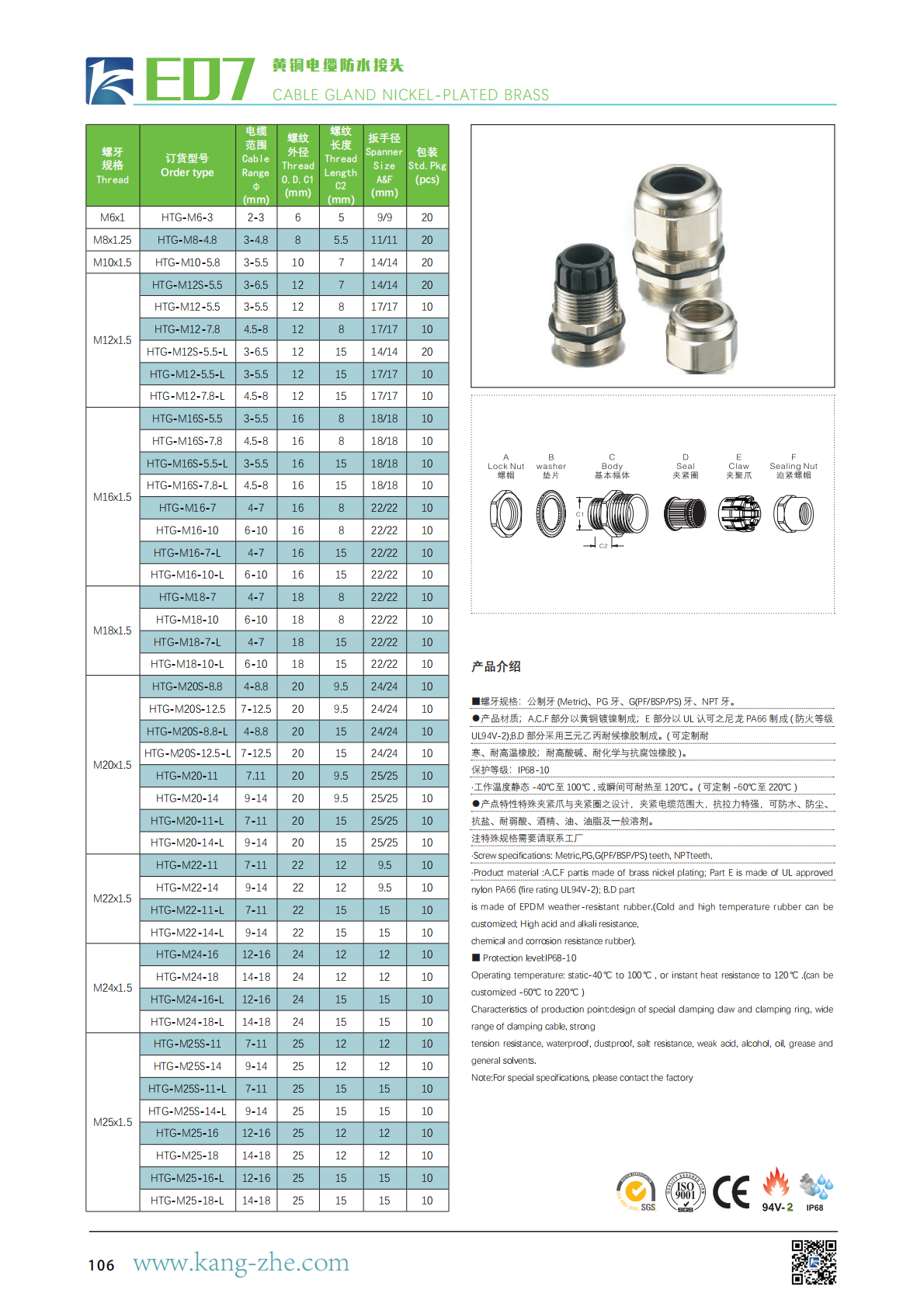

E07 黄铜电缆防水接头 CABLE GLAND NICKEL-PLATED BRASS

螺牙规格：公制牙 (Metric)、PG 牙、G(PF/BSP/PS) 牙、NPT 牙。

产品材质；A.C.F 部分以黄铜镀镍制成；E 部分以 UL 认可之尼龙 PA66 制成 ( 防火等级UL94V-2);B.D 部分采用三元乙丙耐候橡胶制成。( 可定制耐寒、耐高温橡胶；耐高酸碱、耐化学与抗腐蚀橡胶 )。

保护等级：IP68-10

工作温度静态 -40℃至 100℃ , 或瞬间可耐热至 120℃。( 可定制 -60℃至 220℃ )

产点特性特殊夹紧爪与夹紧圈之设计，夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、耐弱酸、酒精、油、油脂及一般溶剂。

注特殊规格需要请联系工厂

·Screw specifications: Metric,PG,G(PF/BSP/PS) teeth, NPTteeth.

·Product material :A.C.F partis made of brass nickel plating; Part E is made of UL approved

nylon PA66 (fire rating UL94V-2); B.D part

is made of EPDM weather-resistant rubber.(Cold and high temperature rubber can be

customized; High acid and alkali resistance,

chemical and corrosion resistance rubber).

Protection level:IP68-10

Operating temperature: static-40℃ to 100℃ , or instant heat resistance to 120℃ .(can be customized -60℃ to 220℃ ) Characteristics of production point:design of special clamping claw and clamping ring, wide range of clamping cable, strong tension resistance, waterproof, dustproof, salt resistance, weak acid, alcohol, oil, grease and general solvents.

Note:For special specifications, please contact the factory
