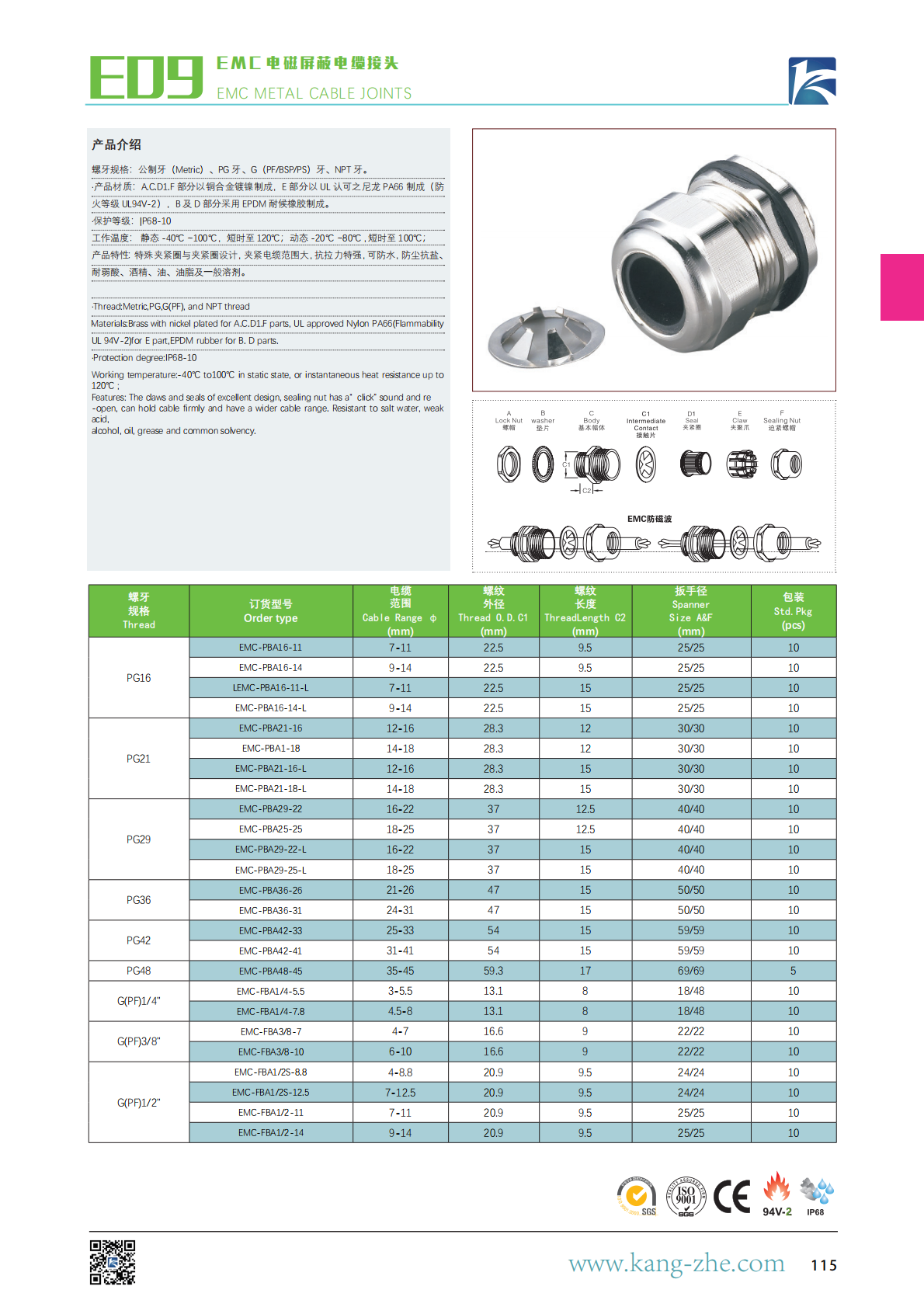

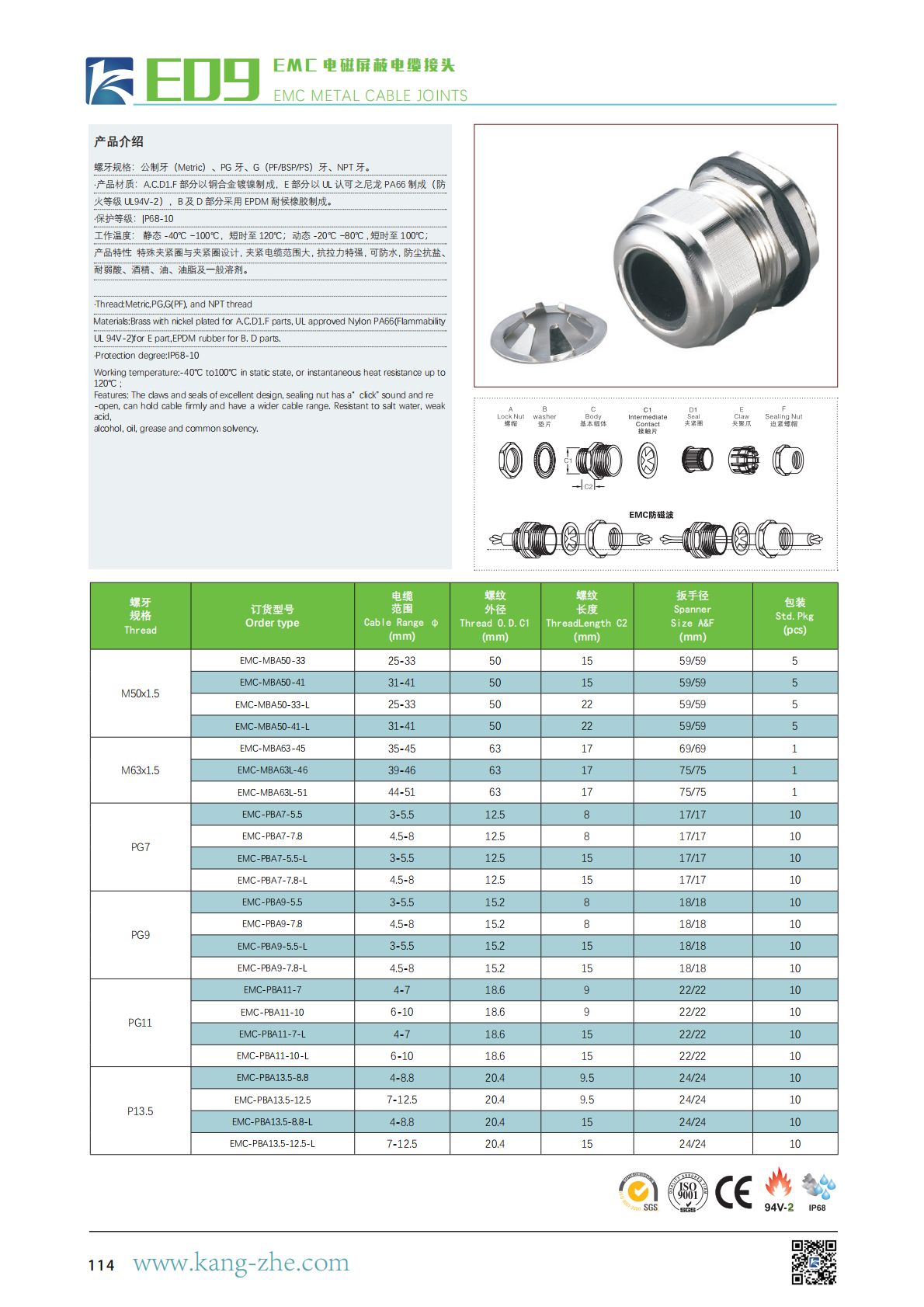

E09 EMC电磁屏蔽电缆接头 EMC METAL CABLE JOINTS

螺牙规格：公制牙（Metric）、PG 牙、G（PF/BSP/PS）牙、NPT 牙。

·产品材质：A.C.D1.F 部分以铜合金镀镍制成，E 部分以 UL 认可之尼龙 PA66 制成（防火等级 UL94V-2），B 及 D 部分采用 EPDM 耐候橡胶制成。

·保护等级：|P68-10

工作温度： 静态 -40℃ ~100℃，短时至 120℃；动态 -20℃ ~80℃ , 短时至 100℃；

产品特性：特殊夹紧圈与夹紧圈设计，夹紧电缆范围大，抗拉力特强，可防水，防尘抗盐、耐弱酸、酒精、油、油脂及一般溶剂。

·Thread:Metric,PG,G(PF), and NPT thread

·Materials:Brass with nickel plated for A.C.D1.F parts, UL approved Nylon

PA66(Flammability

UL 94V-2)for E part,EPDM rubber for B. D parts.

·Protection degree:IP68-10

Working temperature:-40℃ to100℃ in static state, or instantaneous heat resistance up to 120℃ ;

Features: The claws and seals of excellent design, sealing nut has a“ click” sound and reopen, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid,alcohol, oil, grease and common solvency.
