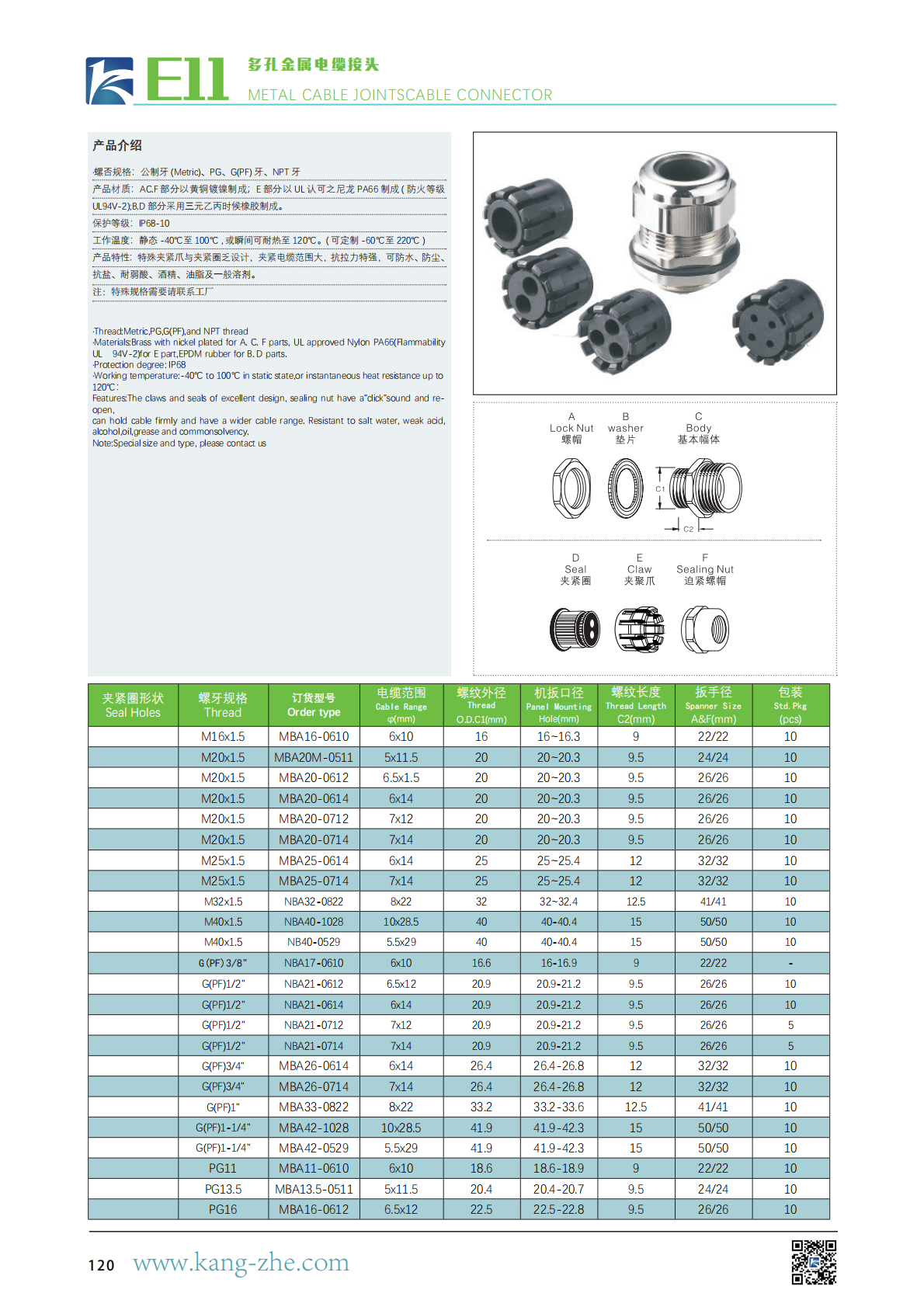

·螺否规格：公制牙 (Metric)、PG、G(PF) 牙、NPT 牙
产品材质：AC.F 部分以黄铜镀镍制成；E 部分以 UL 认可之尼龙 PA66 制成 ( 防火等级UL94V-2);B.D 部分采用三元乙丙时候橡胶制成。
保护等级：IP68-10
工作温度：静态 -40℃至 100℃ , 或瞬间可耐热至 120℃。( 可定制 -60℃至 220℃ )
产品特性：特殊夹紧爪与夹紧圈乏设计，夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、耐弱酸、酒精、油脂及一般溶剂。
注：特殊规格需要请联系工厂
·Thread:Metric,PG,G(PF),and NPT thread
·Materials:Brass with nickel plated for A. C. F parts, UL approved Nylon PA66(Flammability UL 94V-2)for E part,EPDM rubber for B. D parts.
·Protection degree: IP68
·Working temperature:-40℃ to 100℃ in static state,or instantaneous heat resistance up to 120℃：
Features:The claws and seals of excellent design, sealing nut have a"click"sound and reopen,
can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid,alcohol,oil,grease and commonsolvency.
Note:Special size and type, please contact us
