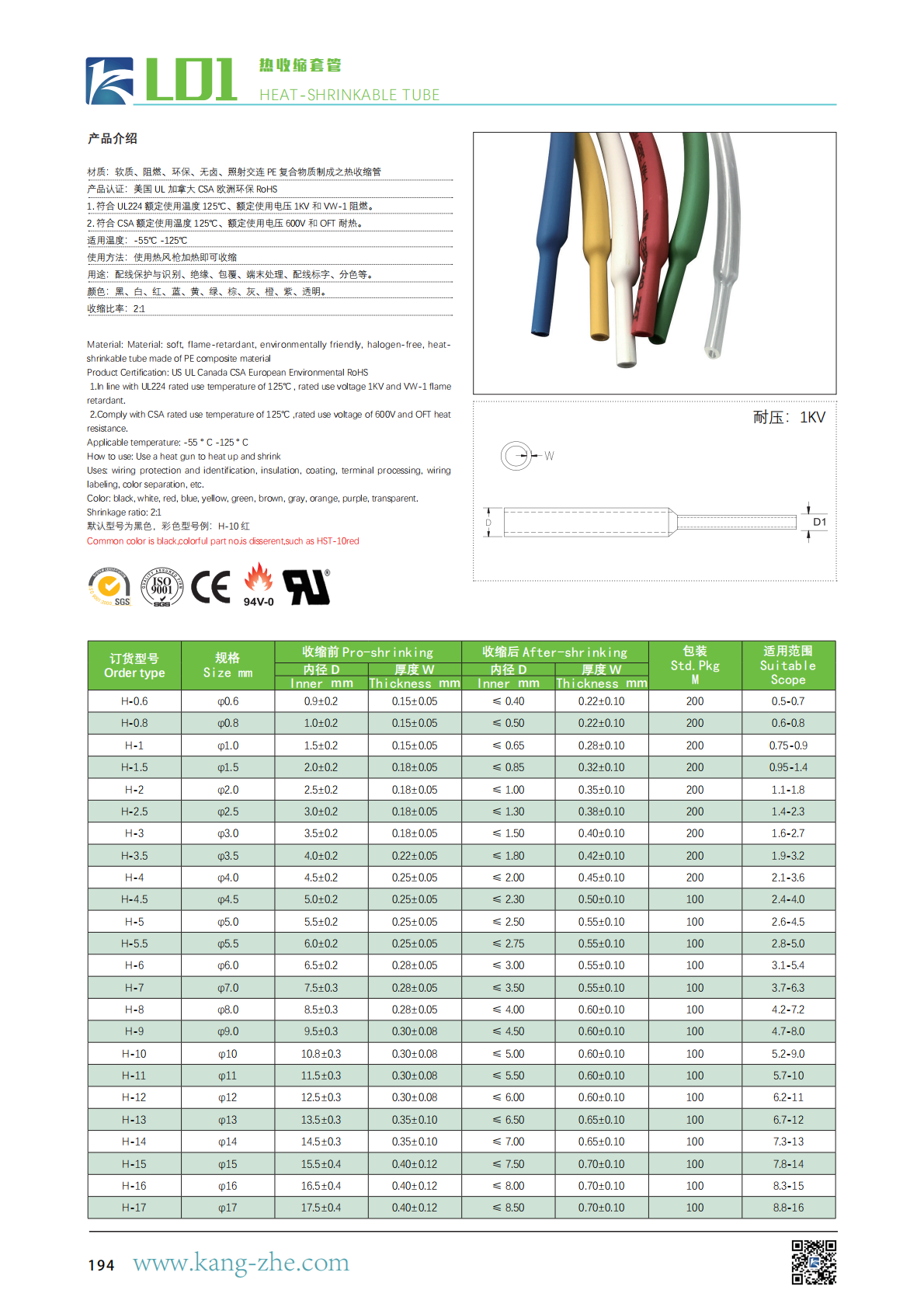

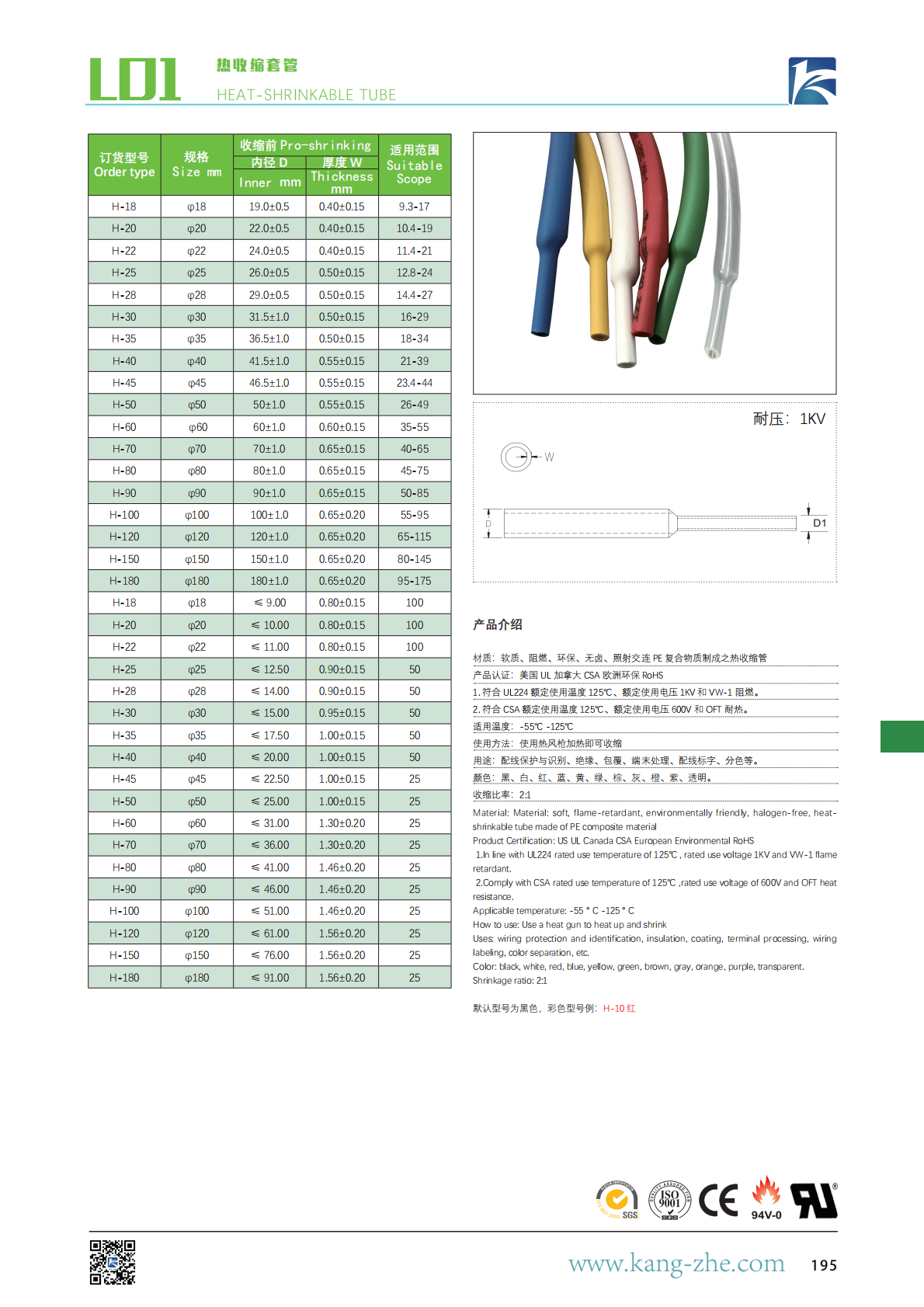

L01 热收缩套管 HEAT-SHRINKABLE TUBE

材质：软质、阻燃、环保、无卤、照射交连 PE 复合物质制成之热收缩管

产品认证：美国 UL 加拿大 CSA 欧洲环保 RoHS

1. 符合 UL224 额定使用温度 125℃、额定使用电压 1KV 和 VW-1 阻燃。

2. 符合 CSA 额定使用温度 125℃、额定使用电压 600V 和 OFT 耐热。

适用温度：-55℃ -125℃

使用方法：使用热风枪加热即可收缩

用途：配线保护与识别、绝缘、包覆、端末处理、配线标字、分色等。

颜色：黑、白、红、蓝、黄、绿、棕、灰、橙、紫、透明。

收缩比率：2:1

耐压：1KV

Material: Material: soft, flame-retardant, environmentally friendly, halogen-free, heat-

shrinkable tube made of PE composite material

Product Certification: US UL Canada CSA European Environmental RoHS

1.In line with UL224 rated use temperature of 125℃ , rated use voltage 1KV and VW-1 flame

retardant.

2.Comply with CSA rated use temperature of 125℃ ,rated use voltage of 600V and OFT heat

resistance.

Applicable temperature: -55 ° C -125 ° C

How to use: Use a heat gun to heat up and shrink

Uses: wiring protection and identification, insulation, coating, terminal processing, wiring

labeling, color separation, etc.

Color: black, white, red, blue, yellow, green, brown, gray, orange, purple, transparent.

Shrinkage ratio: 2:1

默认型号为黑色，彩色型号例：H-10 红

Common color is black,colorful part no.is disserent,such as HST-10red
