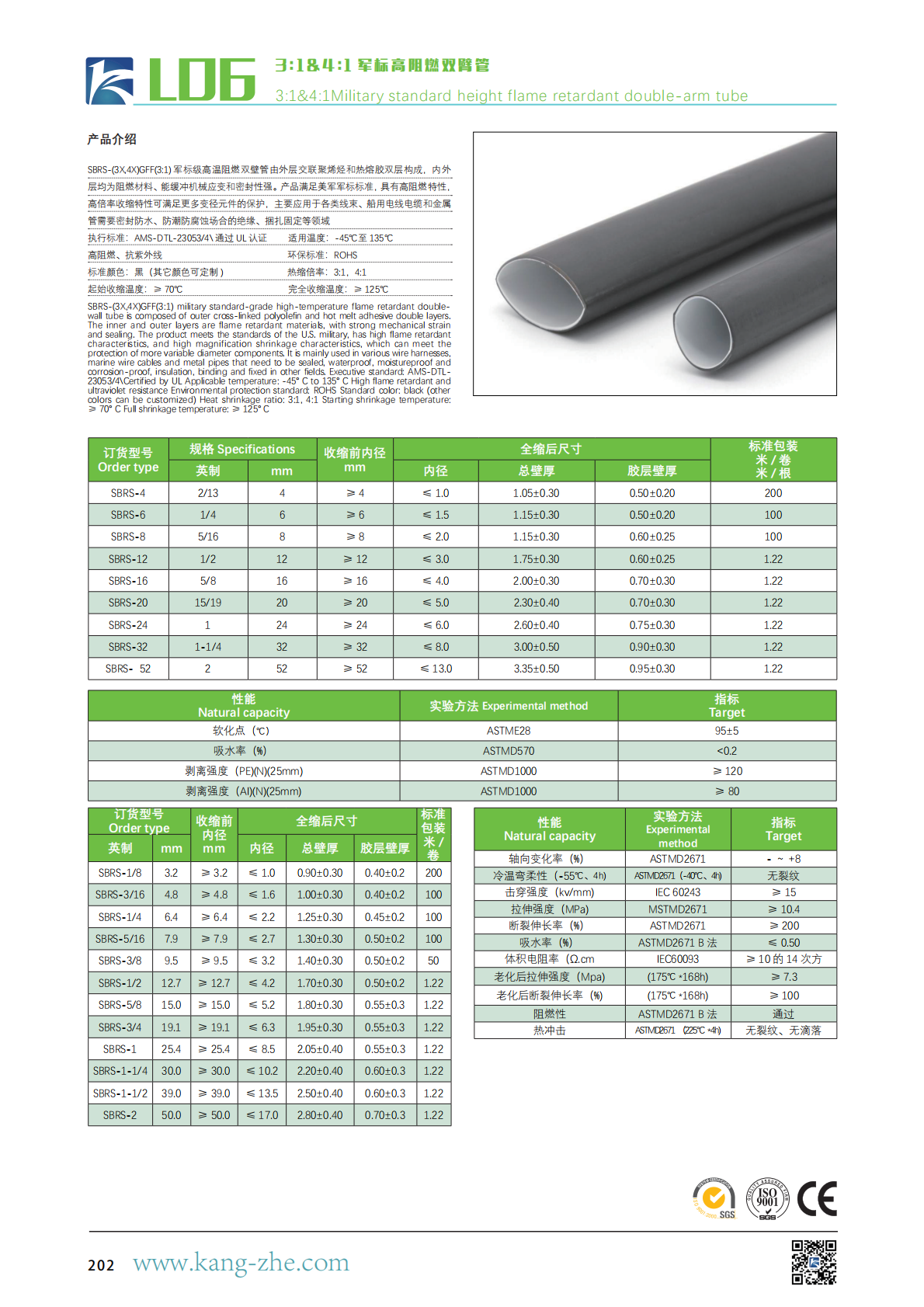

L06 3:1&4:1军标高阻燃双臂管 3:1&4:1Military standard height flame retardant double-arm tube

SBRS-(3X,4X)GFF(3:1) 军标级高温阻燃双壁管由外层交联聚烯烃和热熔胶双层构成，内外

层均为阻燃材料、能缓冲机械应变和密封性强。产品满足美军军标标准，具有高阻燃特性，

高倍率收缩特性可满足更多变径元件的保护，主要应用于各类线束、船用电线电缆和金属

管需要密封防水、防潮防腐蚀场合的绝缘、捆扎固定等领域

执行标准：AMS-DTL-23053/4\ 通过 UL 认证 适用温度：-45℃至 135℃

高阻燃、抗紫外线 环保标准：ROHS

标准颜色：黑（其它颜色可定制 ) 热缩倍率：3:1，4:1

起始收缩温度：≥ 70℃ 完全收缩温度：≥ 125℃

SBRS-(3X,4X)GFF(3:1) military standard-grade high-temperature flame retardant double-

wall tube is composed of outer cross-linked polyolefin and hot melt adhesive double layers.

The inner and outer layers are flame retardant materials, with strong mechanical strain

and sealing. The product meets the standards of the U.S. military, has high flame retardant

characteristics, and high magnification shrinkage characteristics, which can meet the

protection of more variable diameter components. It is mainly used in various wire harnesses,

marine wire cables and metal pipes that need to be sealed, waterproof, moistureproof and

corrosion-proof, insulation, binding and fixed in other fields. Executive standard: AMS-DTL-

23053/4\Certified by UL Applicable temperature: -45° C to 135° C High flame retardant and

ultraviolet resistance Environmental protection standard: ROHS Standard color: black (other

colors can be customized) Heat shrinkage ratio: 3:1, 4:1 Starting shrinkage temperature:

≥ 70° C Full shrinkage temperature: ≥ 125° C
