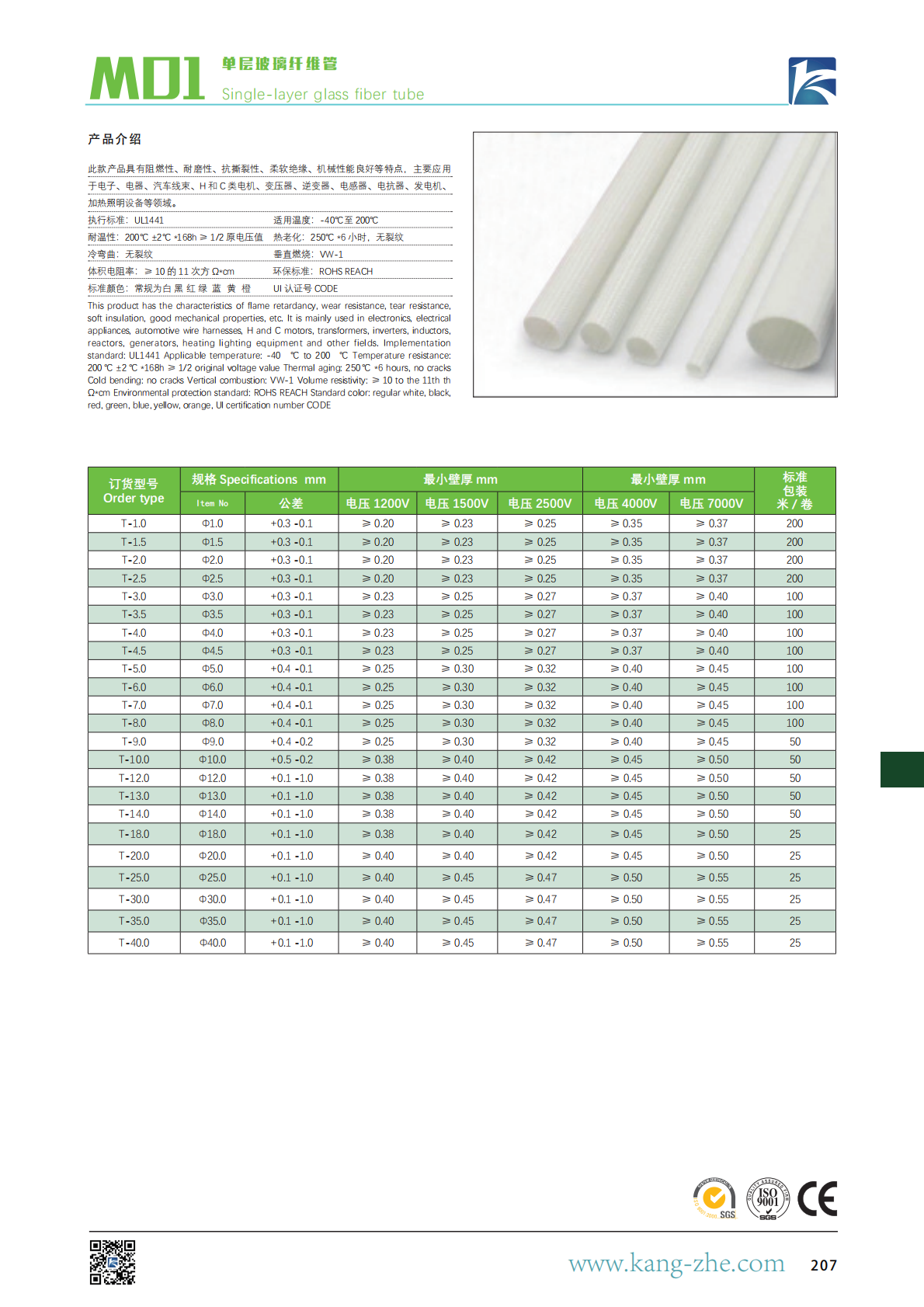

M01 单层玻璃纤维管 Single-layer glass fiber tube

此款产品具有阻燃性、耐磨性、抗撕裂性、柔软绝缘、机械性能良好等特点，主要应用

于电子、电器、汽车线束、H 和 C 类电机、变压器、逆变器、电感器、电抗器、发电机、

加热照明设备等领域。

执行标准：UL1441 适用温度：-40℃至 200℃

耐温性：200℃ ±2℃ *168h ≥ 1/2 原电压值 热老化：250℃ *6 小时，无裂纹

冷弯曲：无裂纹 垂直燃烧：VW-1

体积电阻率：≥ 10 的 11 次方 Ω*cm 环保标准：ROHS REACH

标准颜色：常规为白 黑 红 绿 蓝 黄 橙 UI 认证号 CODE

This product has the characteristics of flame retardancy, wear resistance, tear resistance,

soft insulation, good mechanical properties, etc. It is mainly used in electronics, electrical

appliances, automotive wire harnesses, H and C motors, transformers, inverters, inductors,

reactors, generators, heating lighting equipment and other fields. Implementation

standard: UL1441 Applicable temperature: -40℃ to 200℃ Temperature resistance:

200 ℃ ±2 ℃ *168h ≥ 1/2 original voltage value Thermal aging: 250 ℃ *6 hours, no cracks

Cold bending: no cracks Vertical combustion: VW-1 Volume resistivity: ≥ 10 to the 11th th

Ω*cm Environmental protection standard: ROHS REACH Standard color: regular white, black,

red, green, blue, yellow, orange, UI certification number CODE
