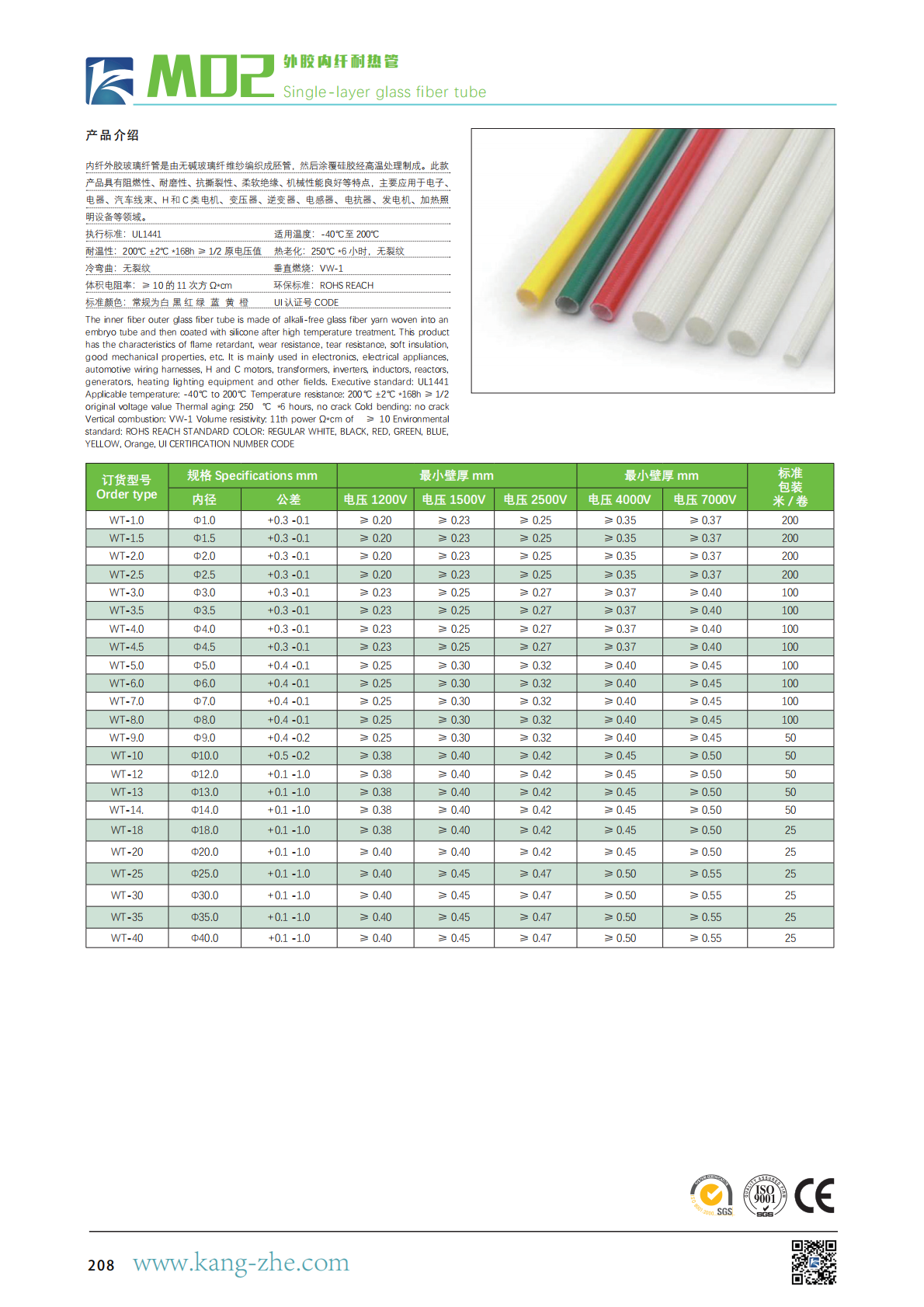

M02 外胶内纤耐热管 Single-layer glass fiber tube

内纤外胶玻璃纤管是由无碱玻璃纤维纱编织成胚管，然后涂覆硅胶经高温处理制成。此款

产品具有阻燃性、耐磨性、抗撕裂性、柔软绝缘、机械性能良好等特点，主要应用于电子、

电器、汽车线束、H 和 C 类电机、变压器、逆变器、电感器、电抗器、发电机、加热照

明设备等领域。

执行标准：UL1441 适用温度：-40℃至 200℃

耐温性：200℃ ±2℃ *168h ≥ 1/2 原电压值 热老化：250℃ *6 小时，无裂纹

冷弯曲：无裂纹 垂直燃烧：VW-1

体积电阻率：≥ 10 的 11 次方 Ω*cm 环保标准：ROHS REACH

标准颜色：常规为白 黑 红 绿 蓝 黄 橙 UI 认证号 CODE

The inner fiber outer glass fiber tube is made of alkali-free glass fiber yarn woven into an

embryo tube and then coated with silicone after high temperature treatment. This product

has the characteristics of flame retardant, wear resistance, tear resistance, soft insulation,

good mechanical properties, etc. It is mainly used in electronics, electrical appliances,

automotive wiring harnesses, H and C motors, transformers, inverters, inductors, reactors,

generators, heating lighting equipment and other fields. Executive standard: UL1441

Applicable temperature: -40℃ to 200℃ Temperature resistance: 200℃ ±2℃ *168h ≥ 1/2

original voltage value Thermal aging: 250℃ *6 hours, no crack Cold bending: no crack

Vertical combustion: VW-1 Volume resistivity: 11th power Ω*cm of≥ 10 Environmental

standard: ROHS REACH STANDARD COLOR: REGULAR WHITE, BLACK, RED, GREEN, BLUE,

YELLOW, Orange, UI CERTIFICATION NUMBER CODE
