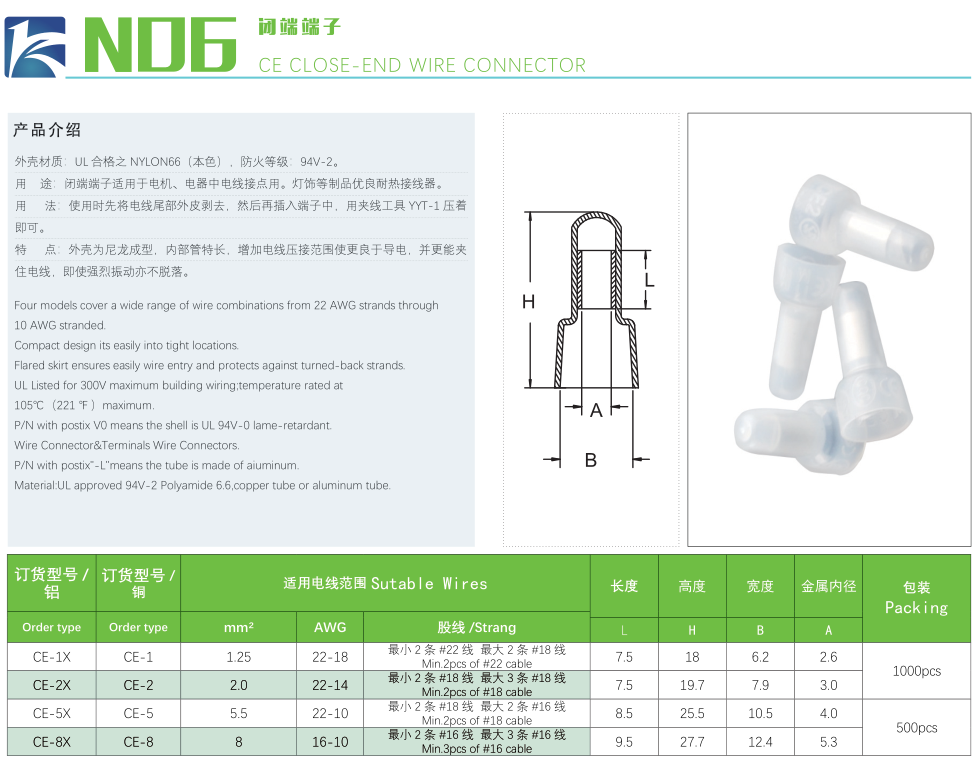

N06 闭端端子 CE CLOSE-END WIRE CONNECTOR

外壳材质：UL 合格之 NYLON66（本色），防火等级：94V-2。

用 途：闭端端子适用于电机、电器中电线接点用。灯饰等制品优良耐热接线器。

用 法：使用时先将电线尾部外皮剥去，然后再插入端子中，用夹线工具 YYT-1 压着

即可。

特 点：外壳为尼龙成型，内部管特长，增加电线压接范围使更良于导电，并更能夹

住电线，即使强烈振动亦不脱落。

Four models cover a wide range of wire combinations from 22 AWG strands through

10 AWG stranded.

Compact design its easily into tight locations.

Flared skirt ensures easily wire entry and protects against turned-back strands.

UL Listed for 300V maximum building wiring;temperature rated at

105℃（221 ℉）maximum.

P/N with postix V0 means the shell is UL 94V-0 lame-retardant.

Wire Connector&Terminals Wire Connectors.

P/N with postix"-L"means the tube is made of aiuminum.

Material:UL approved 94V-2 Polyamide 6.6,copper tube or aluminum tube.
