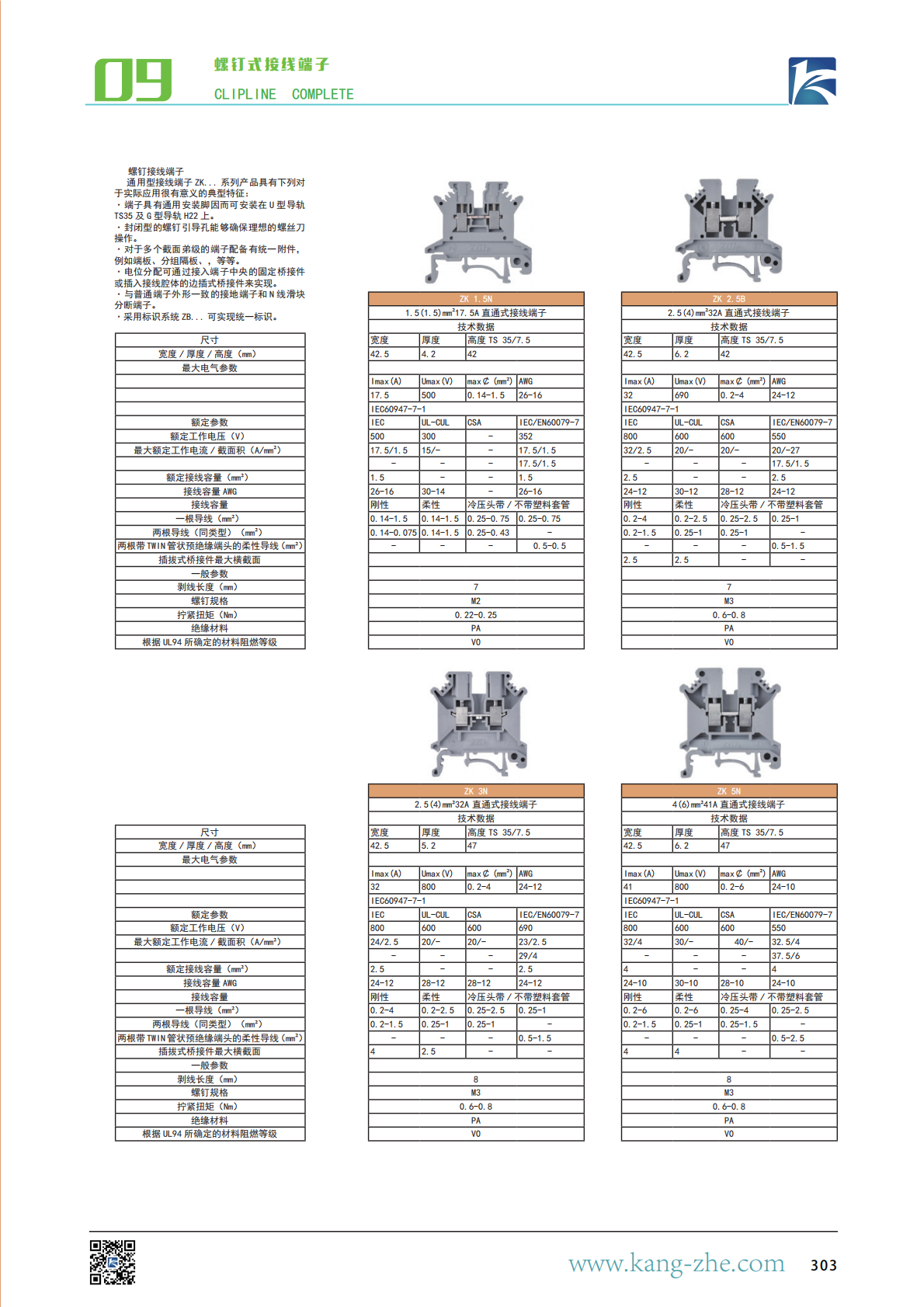

O9 螺钉式接线端子 CLIPLINE COMPLETE

螺钉接线端子

通用型接线端子 ZK... 系列产品具有下列对

于实际应用很有意义的典型特征：

·端子具有通用安装脚因而可安装在 U 型导轨TS35 及 G 型导轨 H22 上。

·封闭型的螺钉引导孔能够确保理想的螺丝刀操作。

·对于多个截面弟级的端子配备有统一附件，例如端板、分组隔板、，等等。

·电位分配可通过接入端子中央的固定桥接件或插入接线腔体的边插式桥接件来实现。

·与普通端子外形一致的接地端子和 N 线滑块分断端子。

·采用标识系统 ZB... 可实现统一标识。

Screw terminal block

The universal terminal block ZK... series products have the following features:

Typical features that are meaningful for practical applications:

·The terminal has universal mounting feet and can be installed on U-shaped rail TS35 and G-shaped rail H22.

·The closed screw guide hole ensures ideal screwdriver operation.

·For terminals with multiple cross-sections, there are unified accessories such as end plates, grouping partitions, etc.

·Potential distribution can be achieved by connecting the fixed bridge in the center of the terminal or inserting the edge plug-in bridge into the wiring cavity.

·Grounding terminal and N-wire slider disconnect terminal with the same appearance as ordinary terminals.

·Using the identification system ZB... can achieve unified identification.
