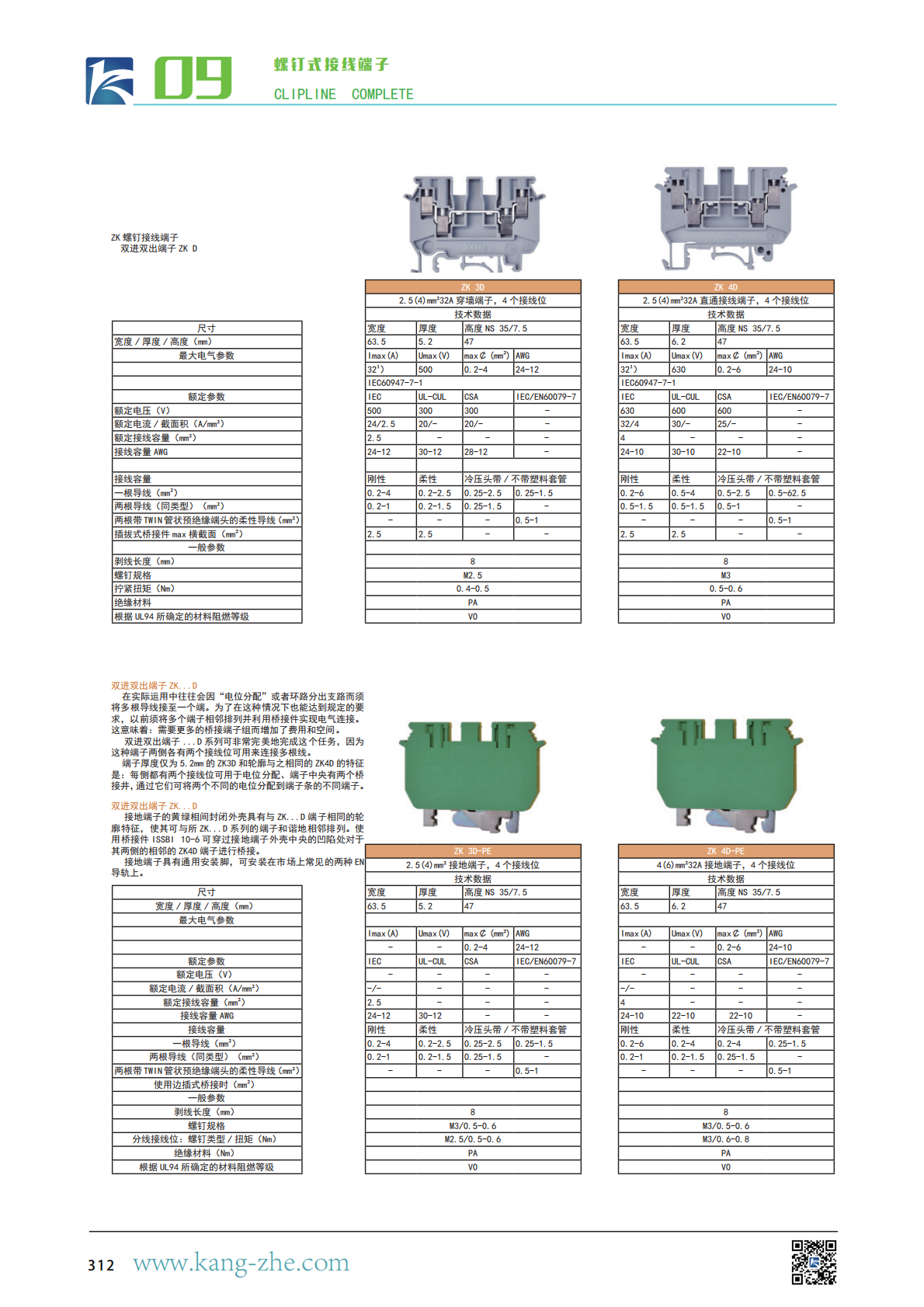

双进双出端子 ZK...D

在实际运用中往往会因“电位分配”或者环路分出支路而须将多根导线接至一个端。为了在这种情况下也能达到规定的要求，以前须将多个端子相邻排列并利用桥接件实现电气连接。这意味着：需要更多的桥接端子组而增加了费用和空间。

双进双出端子 ...D 系列可非常完美地完成这个任务，因为这种端子两侧各有两个接线位可用来连接多根线。端子厚度仅为 5.2mm 的 ZK3D 和轮廓与之相同的 ZK4D 的特征是：每侧都有两个接线位可用于电位分配、端子中央有两个桥接井，通过它们可将两个不同的电位分配到端子条的不同端子。

双进双出端子 ZK...D

接地端子的黄绿相间封闭外壳具有与 ZK...D 端子相同的轮廓特征，使其可与所 ZK...D 系列的端子和谐地相邻排列。使用桥接件 ISSBI 10-6 可穿过接地端子外壳中央的凹陷处对于其两侧的相邻的 ZK4D 端子进行桥接。

接地端子具有通用安装脚，可安装在市场上常见的两种 EN导轨上。

Dual input and dual output terminals ZK... D

In practical applications, it is often necessary to connect multiple wires to one end due to "potential distribution" or loop branching. In order to meet the specified requirements in this situation, multiple terminals must be arranged adjacent to each other and connected electrically using bridging components. This means that more bridging terminal groups are needed, which increases costs and space.

Dual input and dual output terminals The. D series can perfectly accomplish this task because there are two wiring positions on each side of this terminal that can be used to connect multiple wires. The characteristics of ZK3D with a terminal thickness of only 5.2mm and ZK4D with the same contour are: there are two wiring positions on each side for potential distribution, and there are two bridging wells in the center of the terminal, through which two different potentials can be distributed to different terminals of the terminal strip.

Dual input and dual output terminals ZK... D

The yellow green enclosed shell of the grounding terminal has the same contour features as the ZK... D terminals, allowing it to be harmoniously arranged adjacent to the ZK... D series terminals. The bridge ISSBI 10-6 can be used to bridge the adjacent ZK4D terminals on both sides through the recess in the center of the grounding terminal housing.

The grounding terminal has universal mounting pins and can be installed on two common EN rails in the market.
