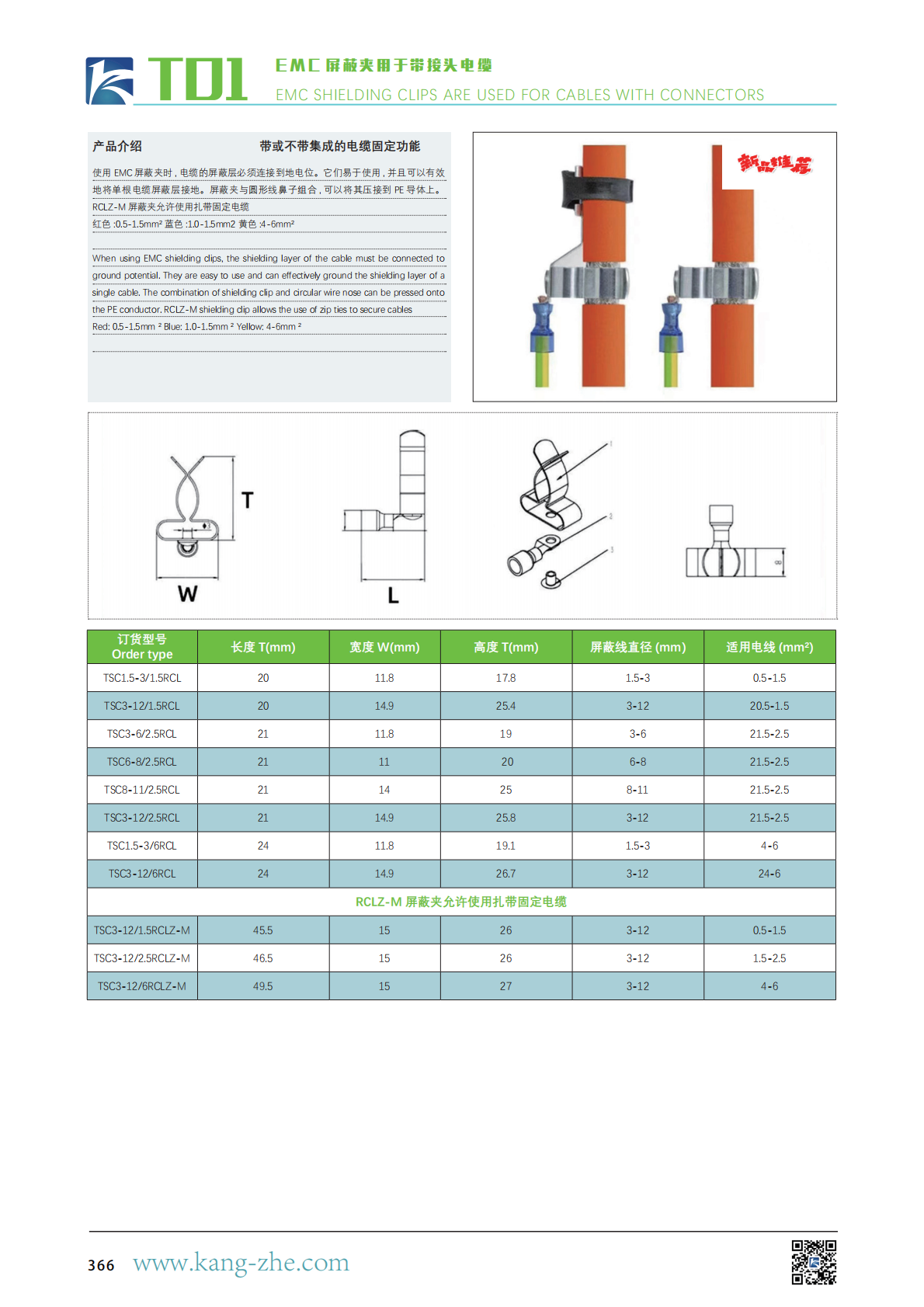

T01 EMC屏蔽夹用于带接头电缆 EMC SHIELDING CLIPS ARE USED FOR CABLES WITH CONNECTORS

使用 EMC 屏蔽夹时 , 电缆的屏蔽层必须连接到地电位。它们易于使用 , 并且可以有效

地将单根电缆屏蔽层接地。屏蔽夹与圆形线鼻子组合 , 可以将其压接到 PE 导体上。

RCLZ-M 屏蔽夹允许使用扎带固定电缆

红色 :0.5-1.5mm² 蓝色 :1.0-1.5mm2 黄色 :4-6mm²

When using EMC shielding clips, the shielding layer of the cable must be connected to

ground potential. They are easy to use and can effectively ground the shielding layer of a

single cable. The combination of shielding clip and circular wire nose can be pressed onto

the PE conductor. RCLZ-M shielding clip allows the use of zip ties to secure cables

Red: 0.5-1.5mm ² Blue: 1.0-1.5mm ² Yellow: 4-6mm ²
