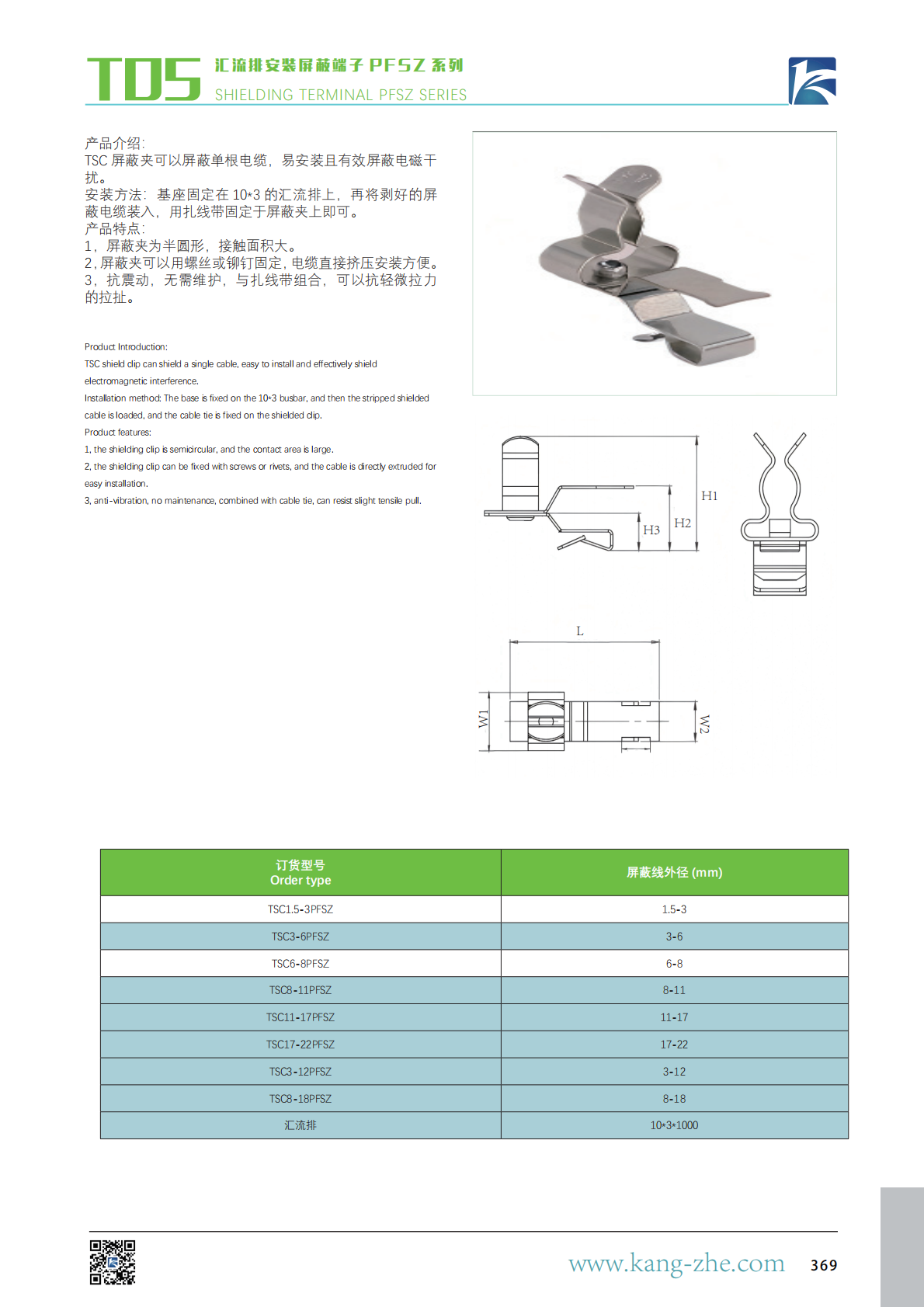

T05 汇流排安装屏蔽端子PFSZ系列 SHIELDING TERMINAL PFSZ SERIES

产品介绍：

TSC 屏蔽夹可以屏蔽单根电缆，易安装且有效屏蔽电磁干扰。

安装方法：基座固定在 10*3 的汇流排上，再将剥好的屏蔽电缆装入，用扎线带固定于屏蔽夹上即可。

产品特点：

1，屏蔽夹为半圆形，接触面积大。

2，屏蔽夹可以用螺丝或铆钉固定，电缆直接挤压安装方便。

3，抗震动，无需维护，与扎线带组合，可以抗轻微拉力

的拉扯。

Product Introduction:

TSC shield clip can shield a single cable, easy to install and effectively shield

electromagnetic interference.

Installation method: The base is fixed on the 10*3 busbar, and then the stripped shielded

cable is loaded, and the cable tie is fixed on the shielded clip.

Product features:

1, the shielding clip is semicircular, and the contact area is large.

2, the shielding clip can be fixed with screws or rivets, and the cable is directly extruded for

easy installation.

3, anti-vibration, no maintenance, combined with cable tie, can resist slight tensile pull.
