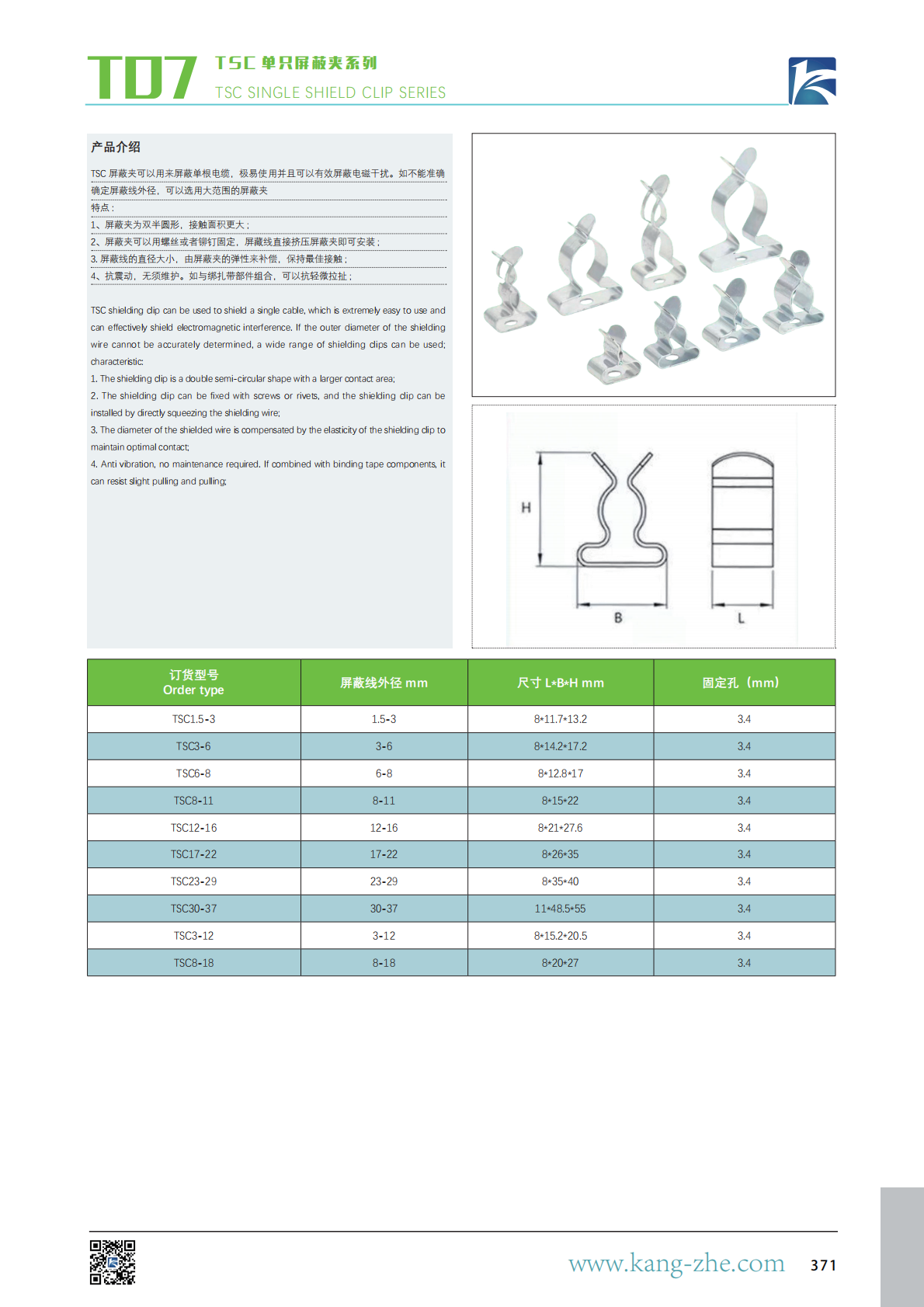

T07 TSC单只屏蔽夹系列 TSC SINGLE SHIELD CLIP SERIES

TSC 屏蔽夹可以用来屏蔽单根电缆，极易使用并且可以有效屏蔽电磁干扰。如不能准确

确定屏蔽线外径，可以选用大范围的屏蔽夹

特点 :

1、屏蔽夹为双半圆形，接触面积更大 ;

2、屏蔽夹可以用螺丝或者铆钉固定，屏藏线直接挤压屏蔽夹即可安装 ;

3. 屏蔽线的直径大小，由屏蔽夹的弹性来补偿，保持最佳接触 ;

4、抗震动，无须维护。如与绑扎带部件组合，可以抗轻微拉扯 ;

TSC shielding clip can be used to shield a single cable, which is extremely easy to use and

can effectively shield electromagnetic interference. If the outer diameter of the shielding

wire cannot be accurately determined, a wide range of shielding clips can be used;

characteristic:

1. The shielding clip is a double semi-circular shape with a larger contact area;

2. The shielding clip can be fixed with screws or rivets, and the shielding clip can be

installed by directly squeezing the shielding wire;

3. The diameter of the shielded wire is compensated by the elasticity of the shielding clip to

maintain optimal contact;

4. Anti vibration, no maintenance required. If combined with binding tape components, it

can resist slight pulling and pulling;
